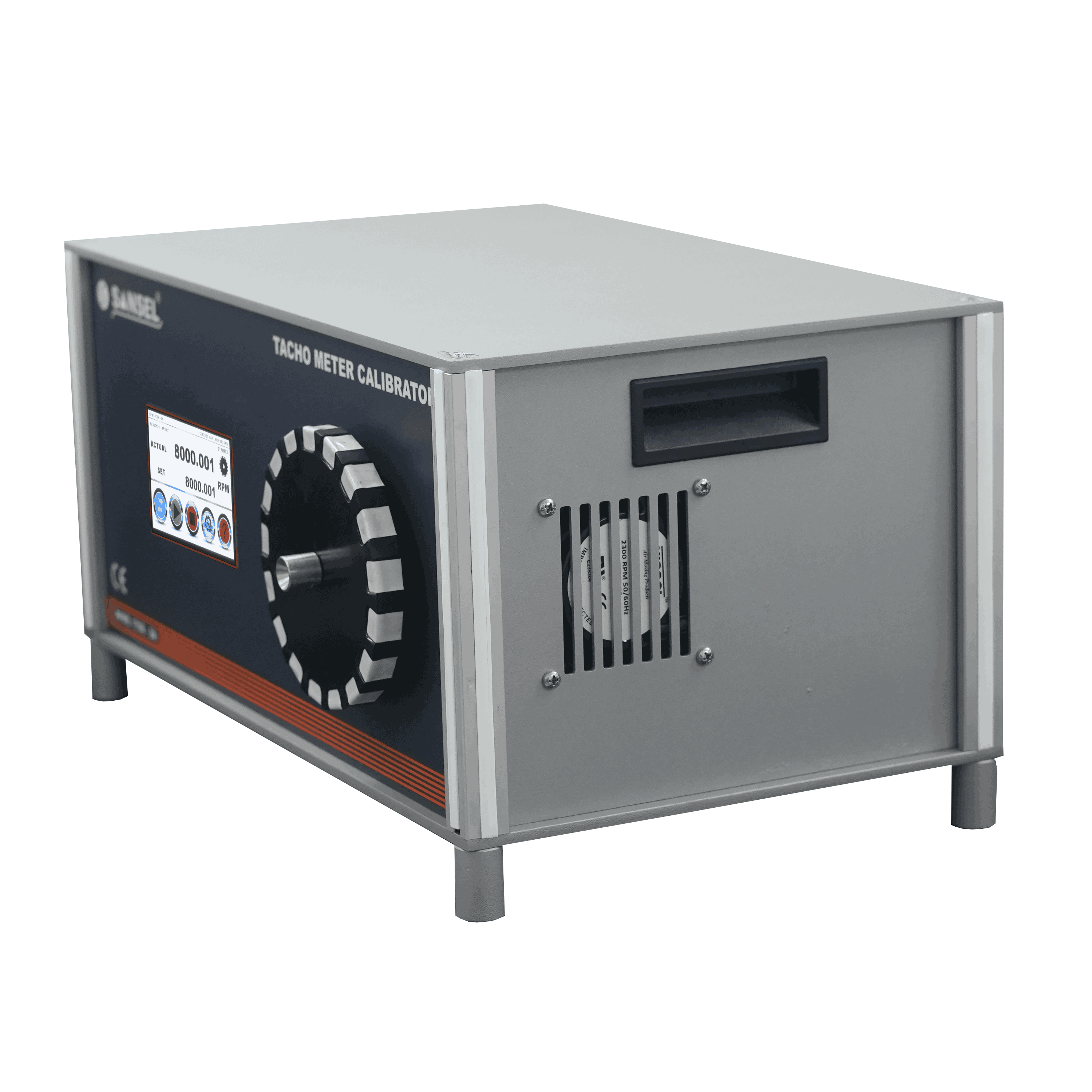

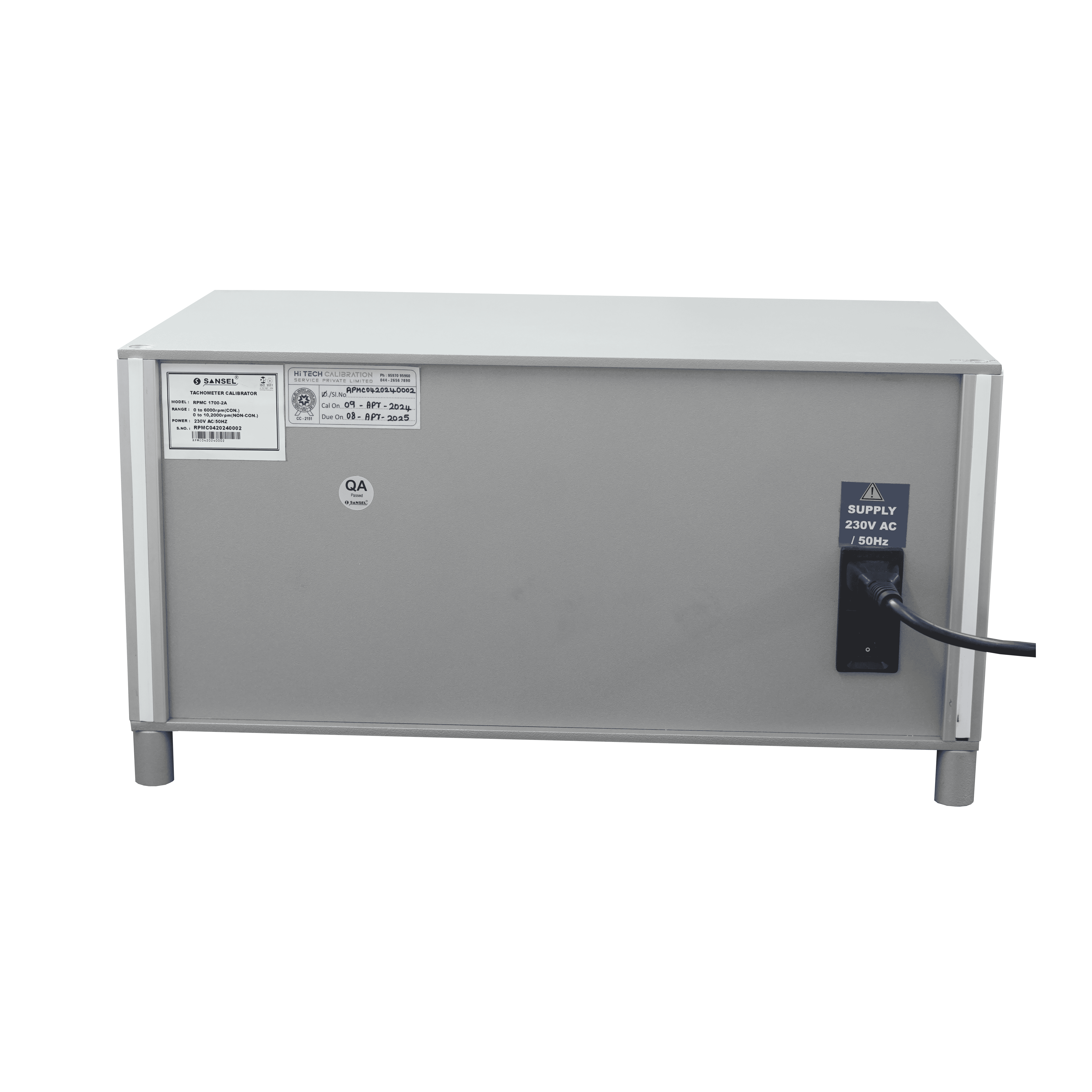

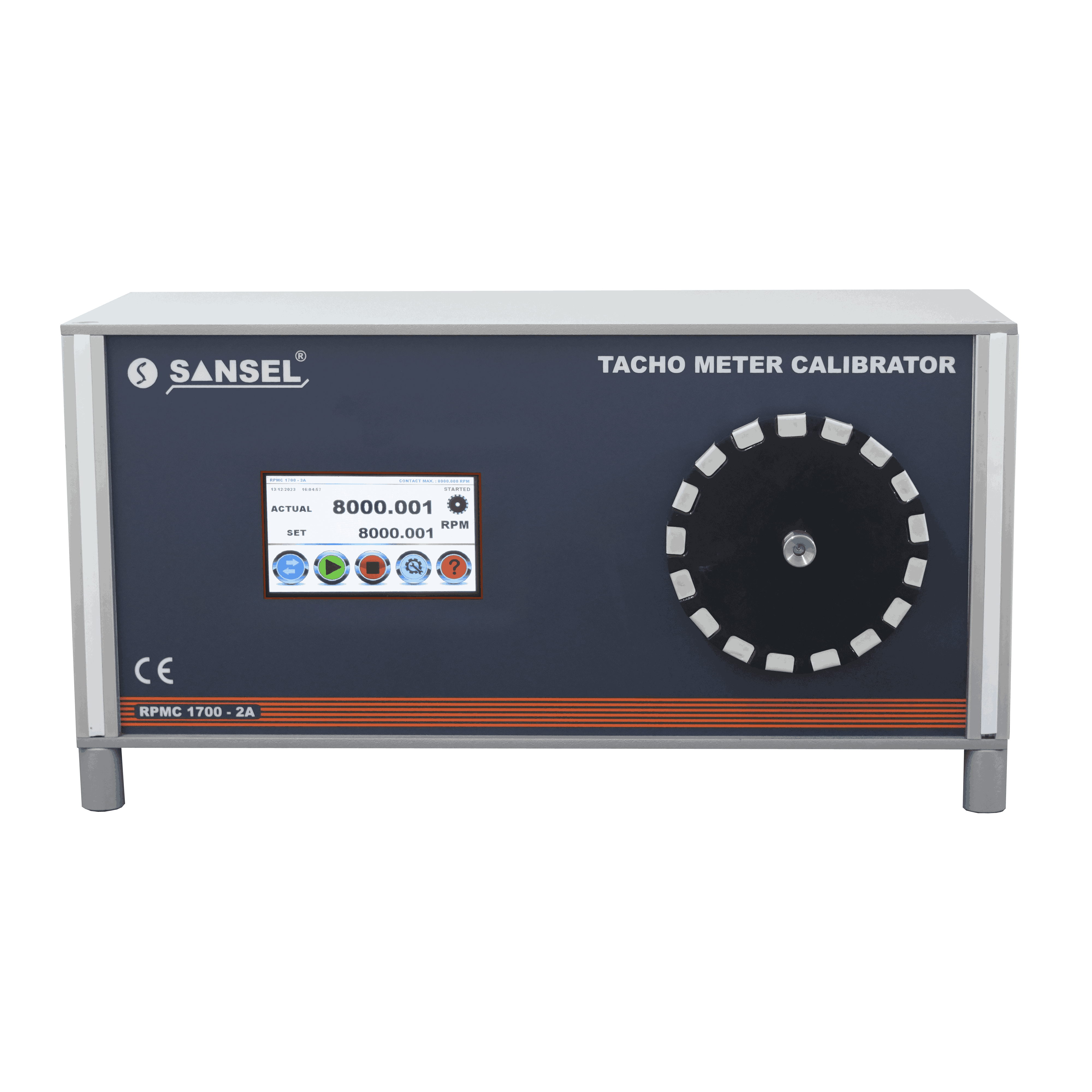

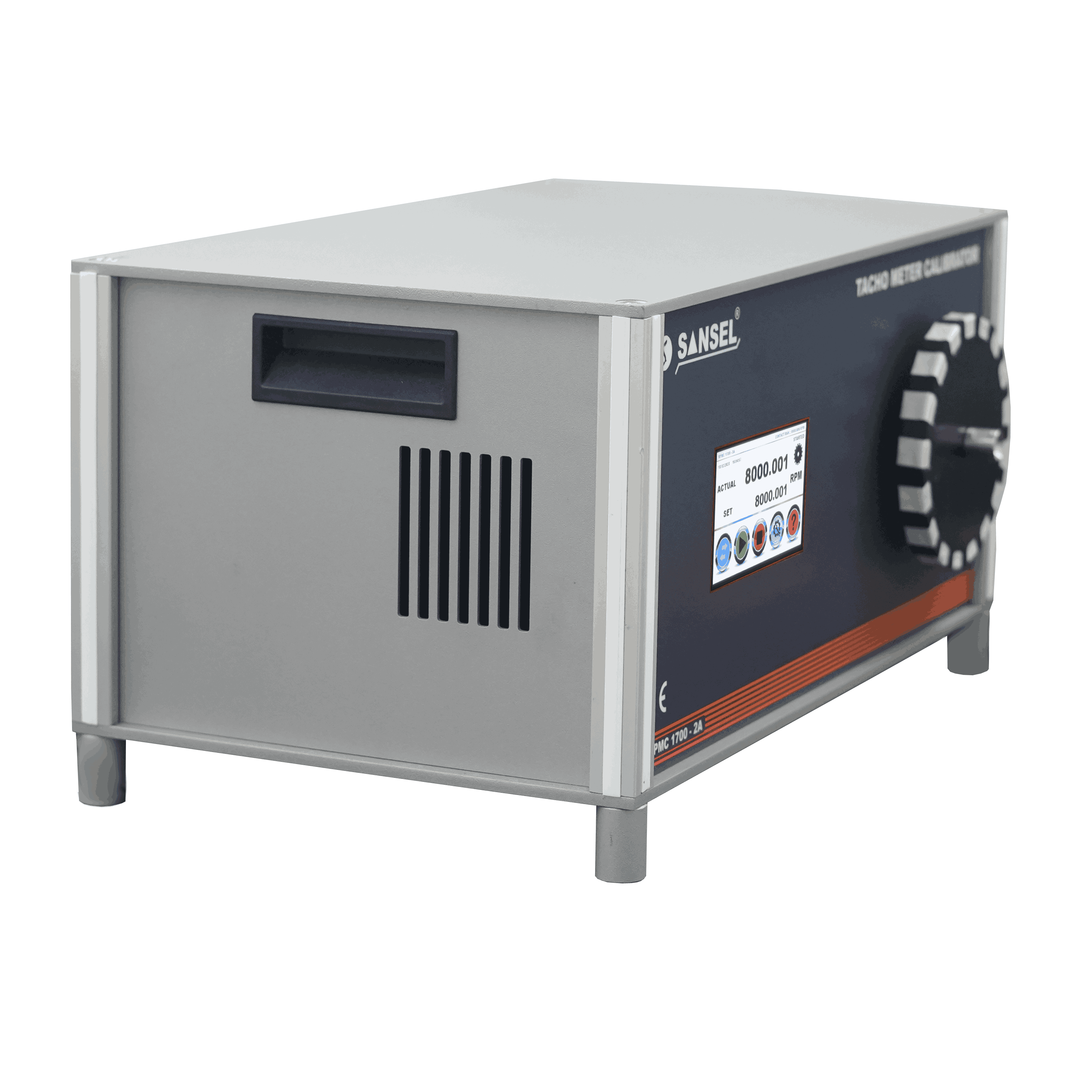

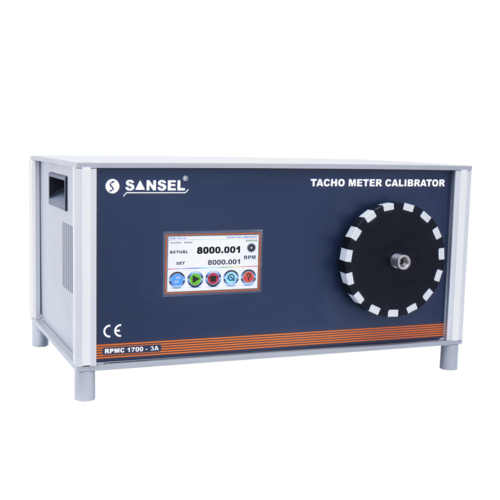

Tachometer Calibrator RPMC 1700-3A

Product Description

Control Range: Contact : 0 to 8000 RPM, Non Contact : 0 to 1,20,000 RPM

Resolution: 0.001 RPM

Display Stability: Contact: ï 0.002 RPM, Non Contact: ï0.01 RPM

Stability: Contact: ï 0.1 RPM, Non Contact: ï2 RPM

Accuracy: Contact : ï 0.2 RPM, Non Contact : ï 5 RPM

Display: 7ï True colour TFT LCD Display with Touch screen

Stability Time: Within 5 seconds

Noise level: < 50dB

Motor: Ultra stable motor with high resolution Encoder & Drive

Power supply: 230V AC ï 10% / 50Hz (Optional 110V AC)

Power Consumption: 750 VA

Outer Enclosure Construction: Aluminium Anodised

Overall Dimension: 260mm L x 440mm W x 230mm H (Approx.)

Instrument Weight: 13 Kg (Approx.)
