Send InquiryDRY BLOCK TEMPERATURE CALIBRATOR
Price 156250.00 INR/ Piece
MOQ : 1 Piece
DRY BLOCK TEMPERATURE CALIBRATOR Specification
- Power
- 230V AC 10% / 50Hz (optional 110V AC)
- Dimension (L*W*H)
- 285 x 155 x 330 (L x B x H) Millimeter (mm)
- Color
- Navy Blue
- Weight
- 8.5 kg Kilograms (kg)
- Usage
- For Industrial use
- Product Type
- Dry block Temperature calibrator
DRY BLOCK TEMPERATURE CALIBRATOR Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- CHENNAI
- Delivery Time
- 4 Week
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001 : 2015
DRY BLOCK TEMPERATURE CALIBRATOR About

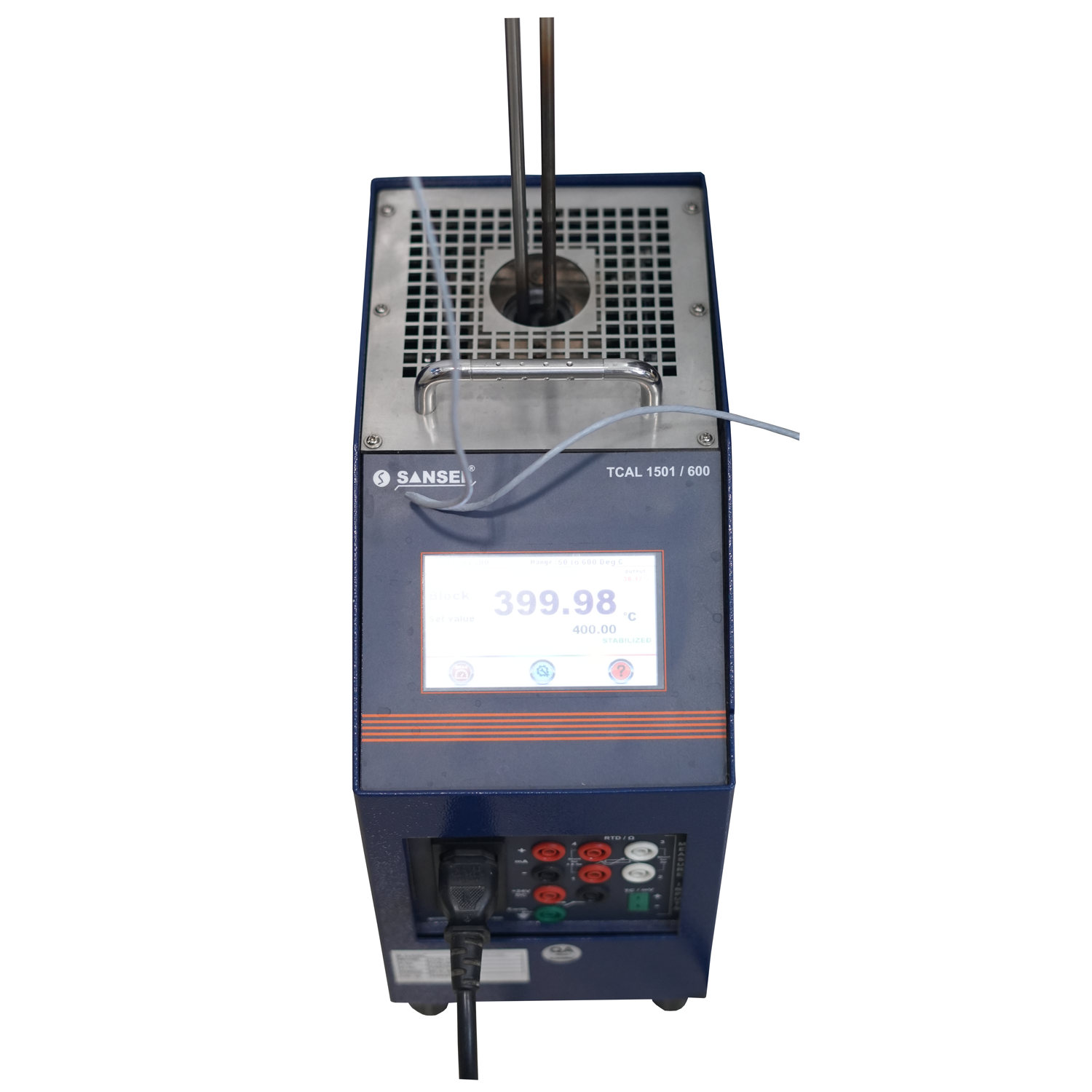

MODEL: TCAL 1501 /600
Display: 4.3 inch true TFT display with touchscreen
Temperature Range: Amb. +5 to 600C
Resolution: 0.01 C
Radial Uniformity: Better Than ï 0.5C
Stability: ï 0.05C
Measure inputs: RTD- PT 100, PT 1000 / TC -J, K, R, S, T, E, B, N / mA /mV/ohms
Heating time: 30 mins (25 to 600C)
Cooling time: 50 mins (600 to 100C )
Time to Stabilize: 15 minutes
Temperature Readout: C
Well Dimension: 30 x 150 mm (dia x height)
Test sensor immersion depth: 140 mm
Standard Well Holein mm: 5.2,6.2,6.2 & 8.1
PC Interface (optional): RS 232 with automatic calibration software
UUC Sensor supply output: 24V DC ï 10% / 50mA max.
Power Supply: 230V AC ï 10% / 50Hz (optional 110V AC)
Power Consumption:1200 VA
Switch test: Provided
Overall Dimension in mm: 285 x 155 x 330 (L x B x H) (Approx.)
Weight: 8.5 kg(without well insert) ( Approx.)
