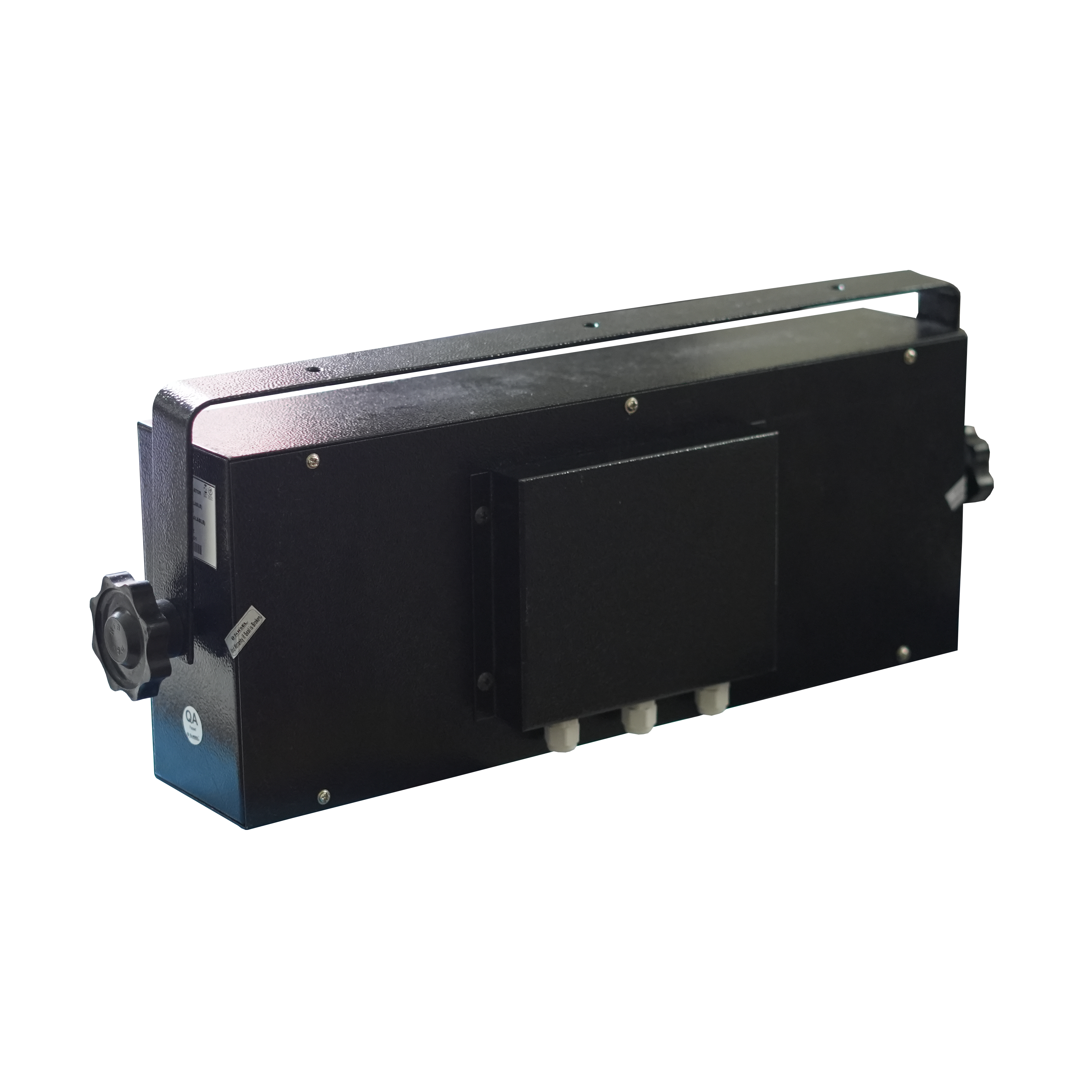

4" 4 Digit Jumbo Process Indicator

Product Description

Model: PIJ -542 A1

Display:2i or 4i or 8i 4 Digit 7 segment RED LED*

Accuracy: i 0.1% of FS

Analog Inputs: 4 i 20 mA, 0 - 20 mA, 0 to 70 mV, 0 to 10 V DC, 0 i 400 i (H & L Limit Programmable)

Temperature Inputs: RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E

Analog Display Range: - 1999 to 9999 (H & L Limit Programmable)

TemperatureRange (H & L Limit Programmable):

• RTD - PT 100 (-199.9 to 850.0C / -199.9 to 999.9 F)
• TC - J (- 200 to 1200C / -328 to 2192F)
• TC - K (- 200 to 1372C / -327 to 2501F)
• TC - R (- 40 to 1768C / -40 to 3214F)
• TC - S (- 40 to 1768C / -40 to 3214F)
• TC - T (- 200 to 400C / -328 to 752F)
• TC - B (300 to 1820C / 572 to 3308F)
• TC - N (-200 to 1300C / -327 to 2372F)
• TC - E ( -200 to 999.9C / -327 to 1832F)

Unit selection:C / F ( for RTD & TC inputs)

Analog input display resolution: 0.001 / 0.01 / 0.1 / 1 (Selectable)

Temperature Resolution: 0.1 / 1 C / F (optional 0.01 for RTD - PT 100 I/P up to 99.99 C Factory presettable)

Filter Constant: 1 - 100 % (Adjustable)

Display Hold option: Peak, hold & average (anyone selectable)

Hold delay: 0 - 999 sec(selectable)

Relay Output (optional): 2 Relay(5A rated) with 6 Relay StatusSelection, Hysterisis, Cyclic Delay

Temperature drift: i 0.1% FS/C (typical 50 ppm)

Re-Transmission (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC

PC Communication (optional): RS 485 (2 wire)MODBUS RTU protocol

PC interface software: Optional

Sensor Supply (external): 24 V DC i10% @ 100 mA

Operating Environment: 0 - 50C / 5 to 95% RH Non condensing

Power Supply: 230 V AC / 50 Hz

Overall Dimension:428 x 171 x 85 (L x H x D) mm (Approx.)

Mounting: Wall or sealing with 360 rotatable clamp

Housing: MS powder coating

Weight: 4.5 Kg (Approx.)
