HIGH PRECISION PRESSURE CALIBRATOR

Name: HIGH PRECISION PRESSURE CALIBRATOR
Brand: SANSEL INSTRUMENTS & CONTROLS
Price: 37500 INR
Availability: InStock

Price 37500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HIGH PRECISION PRESSURE CALIBRATOR Specification

Pressure
0 to 1000 bar

Accuracy
±0.025% of reading

Connection
1/4 BSP Female

Function
Calibration of pressure instruments with high precision

Size
Standard Laboratory Bench Size

Control Interface
Keypad and USB port

Power Supply
AC 220V/50Hz

Resolution
0.001 bar

Weight
Approx. 7 kg

Overload Protection
Integrated safety valve

Display Type
Digital LCD with backlight

Operating Temperature
0°C to 50°C

Material
Stainless Steel Housing

HIGH PRECISION PRESSURE CALIBRATOR Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

HIGH PRECISION PRESSURE CALIBRATOR About

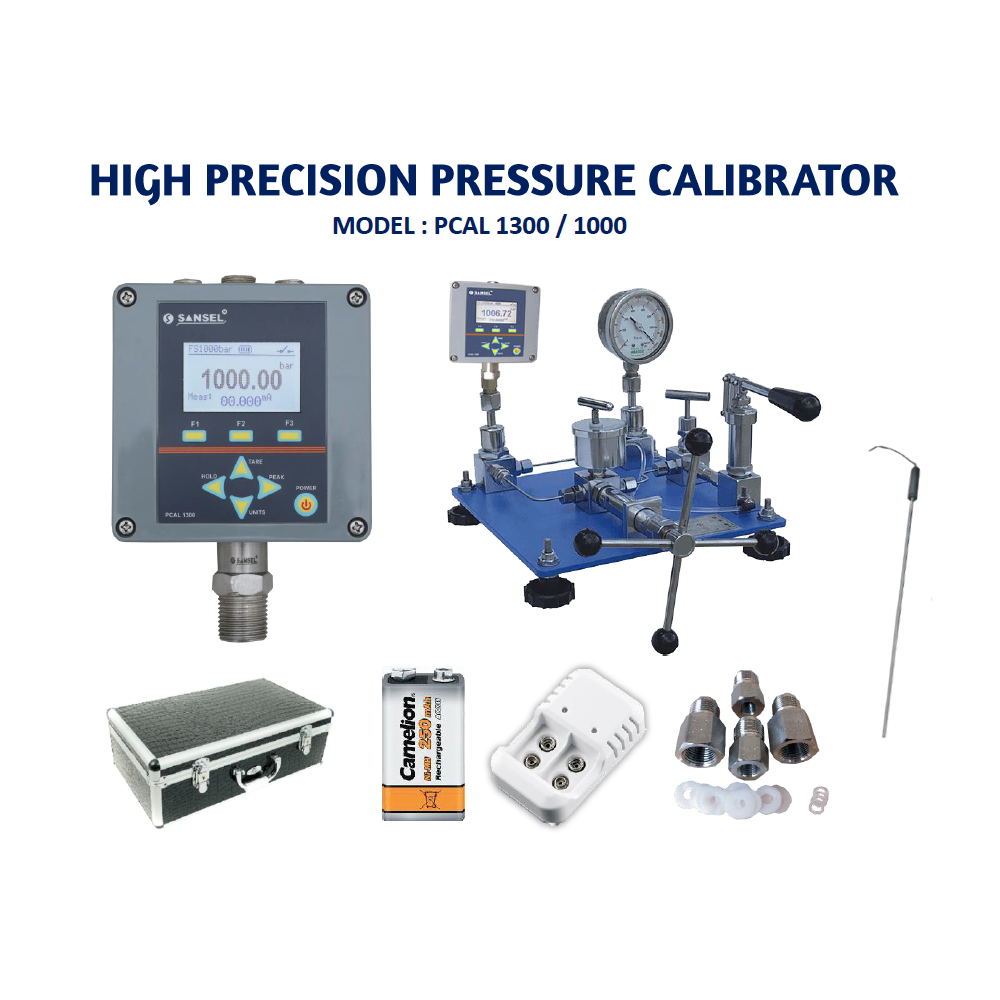

Model: Pcal 1300 / 1000 bar

Display: 128 x 64 COG Graphic LCD with White LED Back light

Range (bar): 0 to 1000 bar

Pressure media: Oil & Water

Pressure pump: HP 01

Pressure Port: 2 x BSP Female

Pump dimension in mm (Appox.): 340 x 240 x 320 (L x H x W)

Resolution (bar): 6 digit user selectable

Instrument Port: 14 BSP Male x 10 mm long

Instrument dimension: 100 x 100 x 55 (W x H x D) mm

Instrument Weight: 400gms (Approx.)

Stability time: 1 to 2 mins

Accuracy: 0.05%FS PSI 17400 Psi

Over pressure: 120%

Pressure units * (selectable): bar, mbar, Mpa, kpa, kg/cm2, inHg, cmHg, mmHg,mHO, ftHO, inHO, cmHO,mmHO

Pressure Zero: One touch zero provided on front key

Pressure Peak: Maximum & minimum with user reset option

Pressure overflow: FS X 2 (Max.)

Pressure burst: FS X 3 (Max.)

Temp. Measure: RTD -PT 100 (2,3,4, wire selectable)

Temp. Range: -199.999 to 850.000

mA Measure: 0-24 mA (scalable)

Display scale: -99999 to 99999 counts (for mA measure input)

Switch test: Provided

Display Hold: One touch hold provided on front key

Power Supply: 9V DC 5% / 200mAh Rechargeable battery with battery life 4hours with out back light (or) 9V DC adapter /230V AC supply operated

Pump Weight (gms)(Approx.): 7500

Pc Interface: RS 485

Pc Software: Windows based semi automatic calibration software (optional)

Exceptional Measurement Accuracy

This calibrator offers unparalleled precision with an accuracy of 0.025% of reading, making it suitable for demanding laboratory and field calibration tasks. The high resolution of 0.001 bar ensures that even subtle pressure differences can be detected, enhancing quality control and instrument verification.

Durable Design for Professional Use

Built with a stainless steel housing, the pressure calibrator withstands rigorous everyday use in both industrial and laboratory environments. Its integrated safety valve protects the device from overload, ensuring long-term reliability while maintaining stable operation between 0C and 50C.

Simple Interface and Flexible Connectivity

Operation is straightforward with a well-laid-out keypad and USB connectivity for data management or firmware updates. The intuitive digital LCD with backlight delivers legible readings in various lighting conditions, supporting efficient workflow for technicians and engineers.

FAQ's of HIGH PRECISION PRESSURE CALIBRATOR:

Q: How is the High Precision Pressure Calibrator operated?

A: The calibrator is operated using an intuitive keypad for direct control, and it also features a USB port for data handling or software updates, allowing for efficient and precise calibration tasks.

Q: What types of pressure instruments can be calibrated with this device?

A: This calibrator is designed to calibrate a wide range of pressure instruments, such as gauges, sensors, and transmitters, within the pressure range of 0 to 1000 bar, making it suitable for various industrial and laboratory applications.

Q: When should the calibrator be used for instrument verification?

A: The calibrator should be used during routine maintenance, quality assurance checks, or whenever there is a need to verify and adjust pressure measurement devices to ensure their accuracy and regulatory compliance.

Q: Where can the calibrator be installed or used effectively?

A: Compact and robust, the calibrator is ideally suited for installation on standard laboratory benches, but its durable construction also supports use in demanding industrial settings across India.

Q: What benefits does the integrated safety valve provide?

A: The integrated safety valve offers overload protection, safeguarding both the calibrator and connected instruments from excessive pressure, thereby extending equipment lifespan and maintaining user safety.

Q: How does the digital LCD with backlight enhance usability?

A: The digital LCD with backlight ensures that readings are clearly visible under different lighting conditions, facilitating convenient operation and minimizing the risk of errors during calibration procedures.
