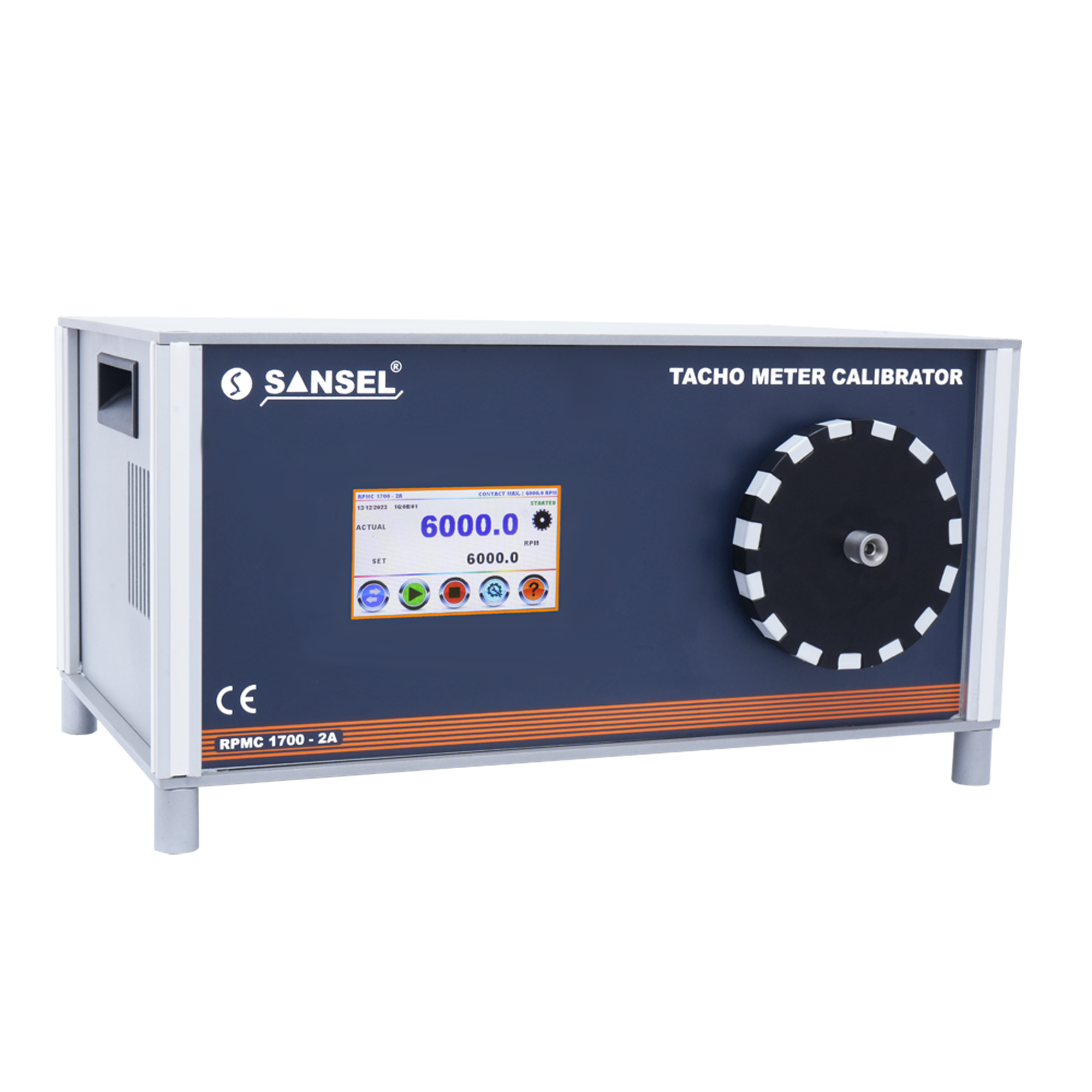

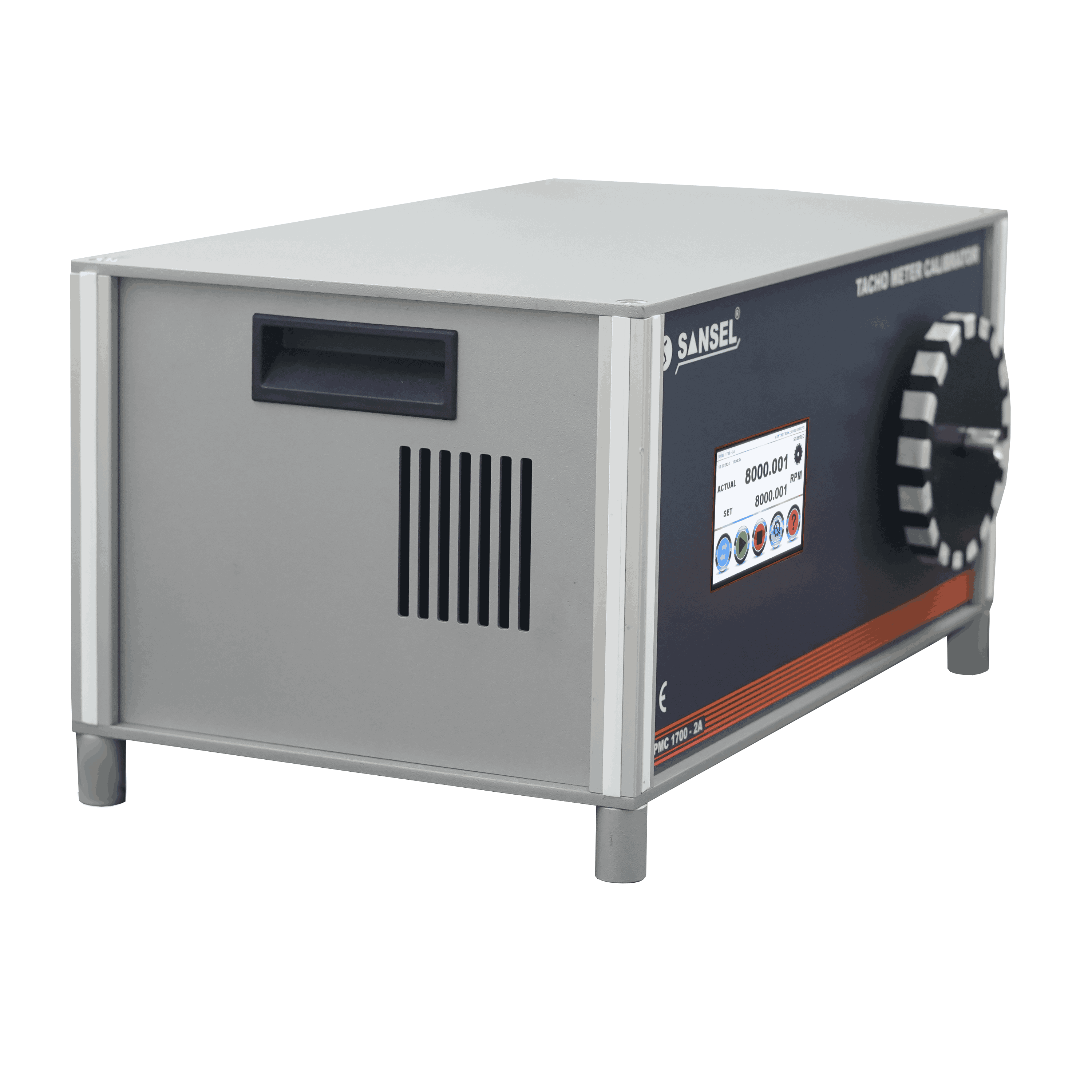

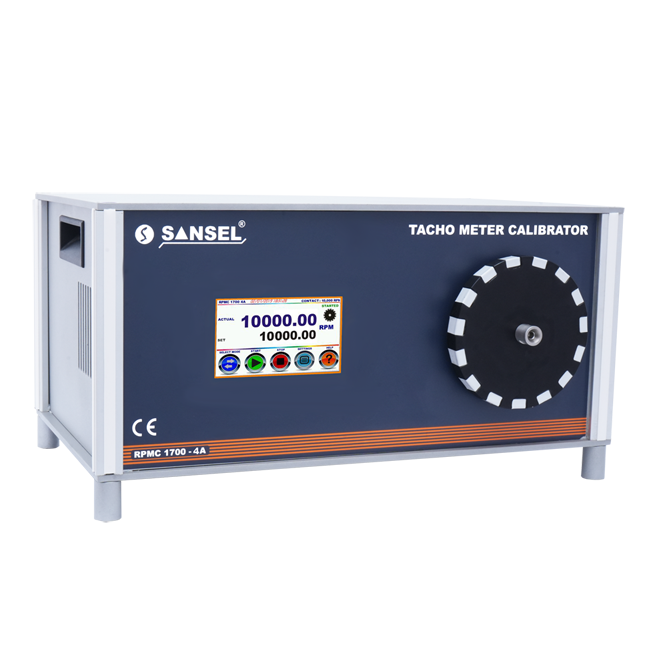

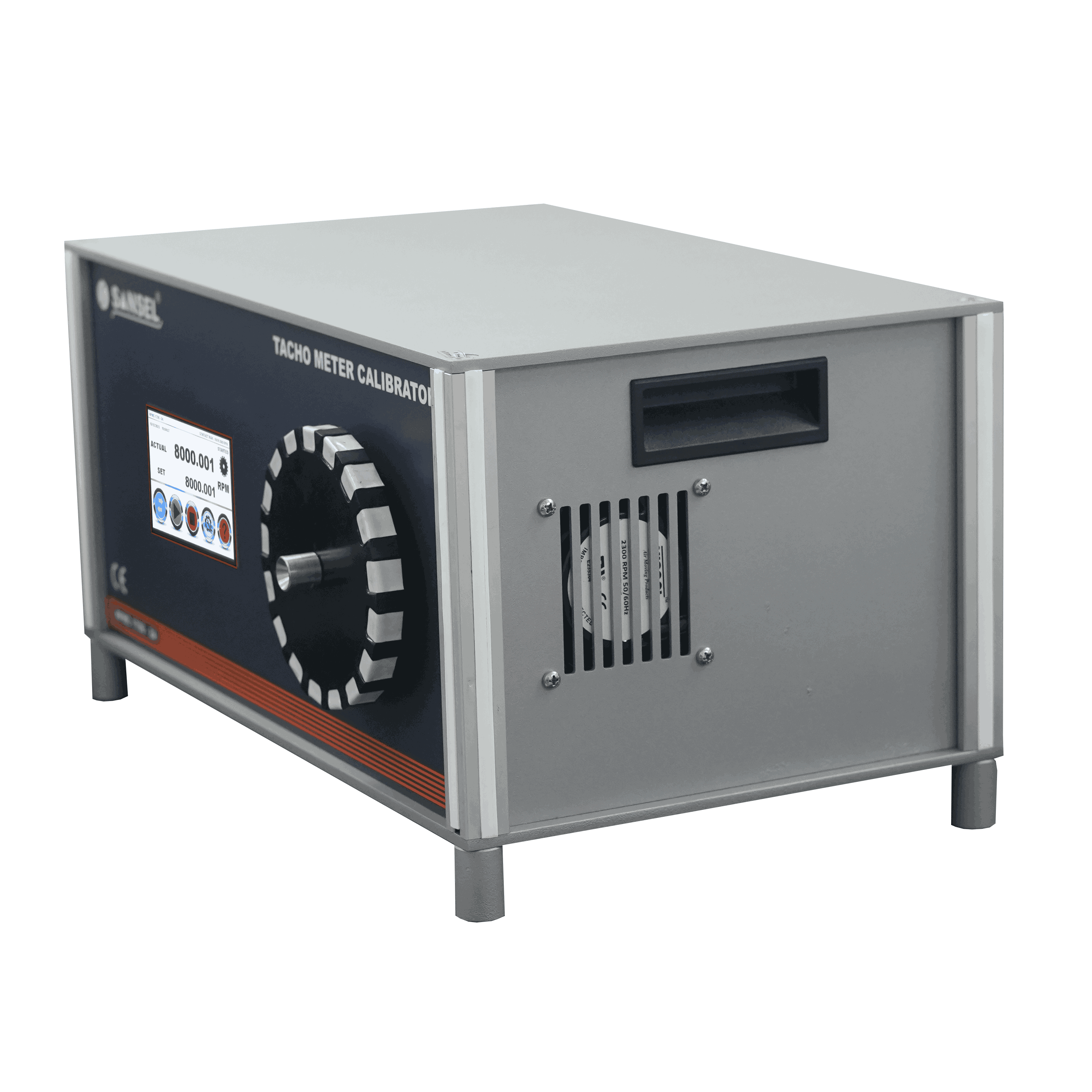

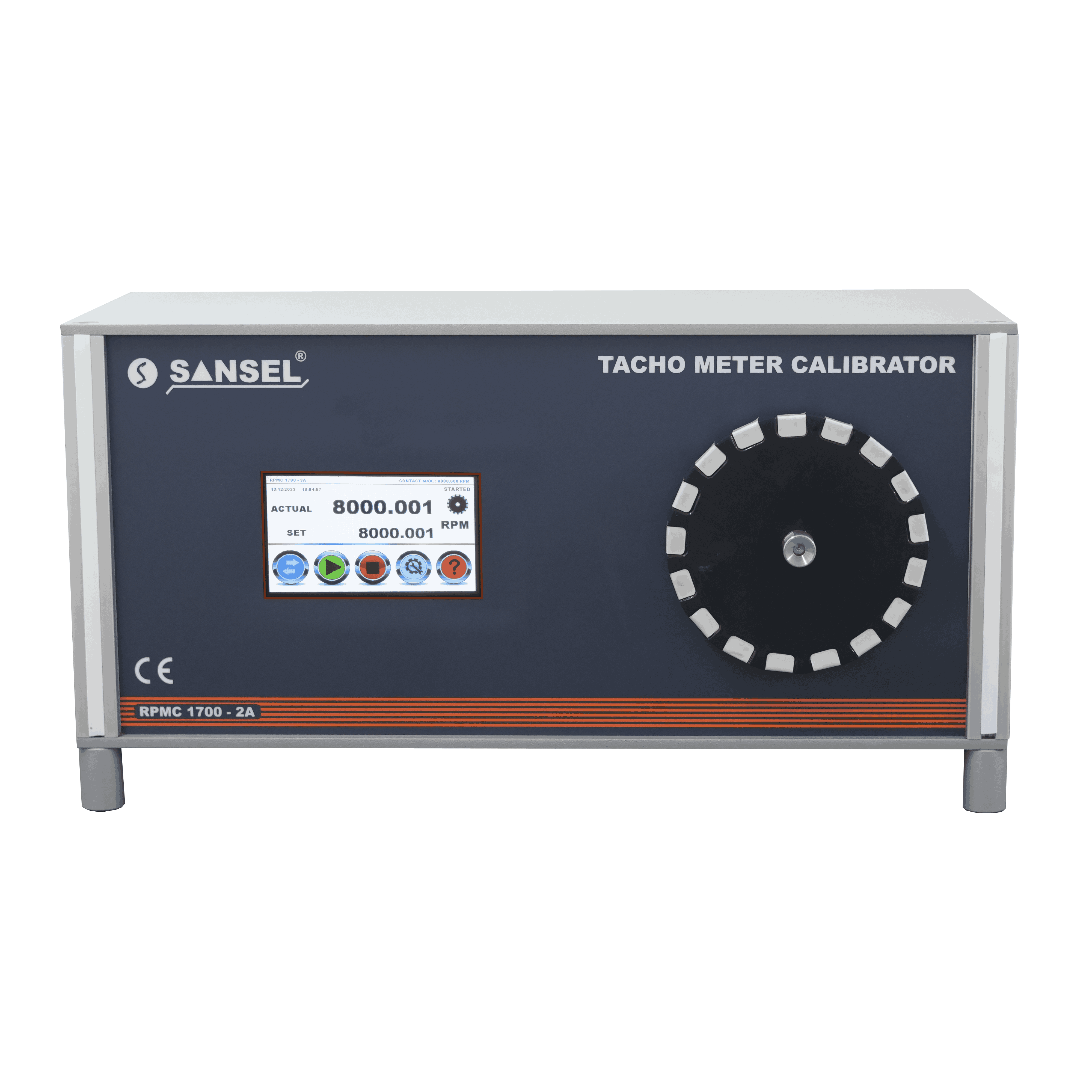

TACHOMETER CALIBRATOR

About TACHOMETER CALIBRATOR

Display: 4.3 True colour TFT LCD Display with Touch screen

Control Range:

Contact : 0 to 6000 RPM

Non Contact : 0 to 1,02,000 RPM

Resolution:  0.1 RPM

Accuracy:

Contact : 6 rpm to 6000 rpm = 0.007% of rdg + 0.1 rpm,

Non Contact :

1 Teeth : 6 rpm to 6000 rpm = 0.007% of rdg + 0.1 rpm

5 Teeth : 6001 rpm to 30,000 rpm = 0.007% of rdg

17 Teeth : 30,001 rpm to 1,02,000 rpm = 0.007% of rdg

Display Stability:   +-0.1 RPM (for both Contact & Non Contact)

Stability: Contact : 0.1 rpm

Non Contact :

1 Teeth :6 rpm to 2000 rpm = 0.1 rpm

              2001 rpm to 6000 rpm = 0.2 rpm

5 Teeth : 6001 rpm to 30,000 rpm = better than 0.7 rpm

17 Teeth : 30,001 rpm to 1,02,000 rpm = better than 1.0 rpm

Stability Time:  Within 5 seconds

Noise level: <50dB

Motor: Ultra stable motor with high resolution Encoder & Drive

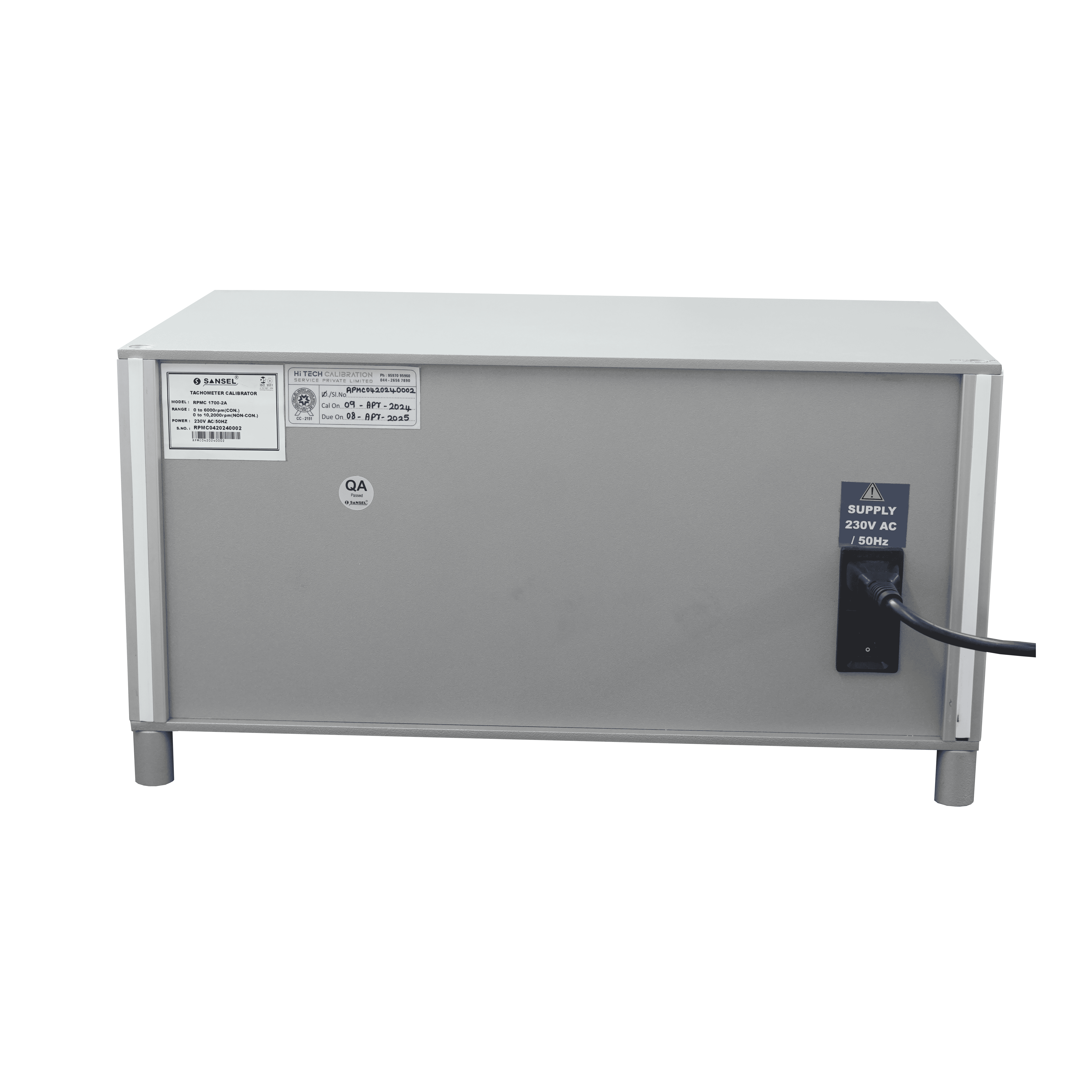

Power supply:   230V AC +-10% / 50Hz (Optional 110V AC)

Power Consumption:   750 VA

Outer Enclosure Construction:  Aluminium Anodised

Overall Dimension:   260mm L x 440mm W x 230mm H (Approx.)

Instrument Weight:  13 kg(Approx.)
