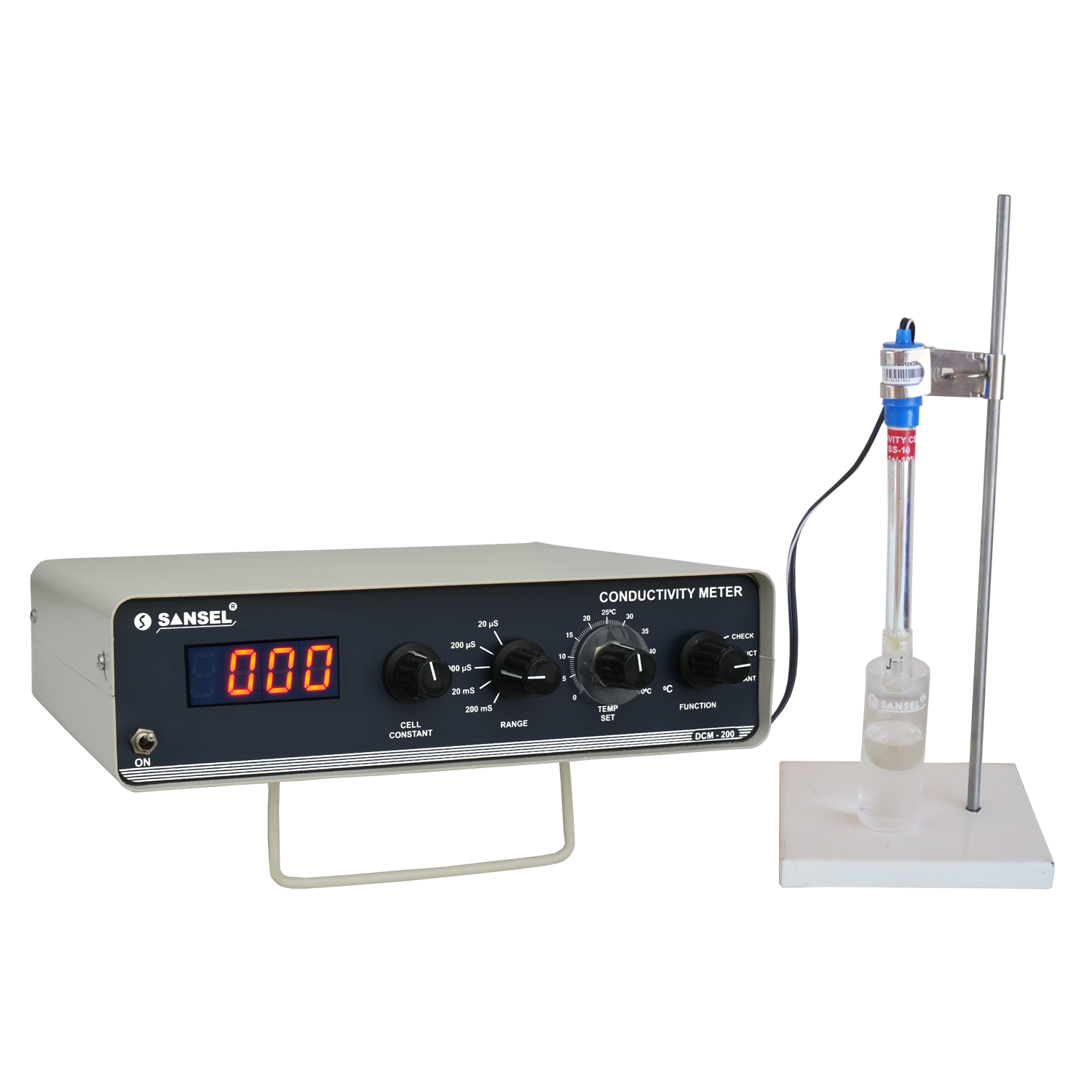

Lab Model Conductivity Meter

About Lab Model Conductivity Meter

Model: DCM 200

Display: 0.5" 3 Digit 7 segment Red LED

Range: 0 - 20 S/ 200 S/ 2000 S/ 20 mS / 200 mS ( 5 range selection using front rotary  switch )

Accuracy : 1 % of Range 1 digit

Resolution: 0.01 / 0.1 / 1 for S range & 0.01 / 0.1 for mS range

Temperature Compensation: 0 to 50C  (Manual) continuously adjustable

Cell Constant: Adjustable with indication on display

Sensor: Platinum Conductivity cell (1.0 cell constant) with Banana male connector

Input Connection: Banana Socket

Operating Environment: 0 to 50 C / 20 to 95 % RH non condensing

Power supply: 230V AC / 50 Hz 10%

Overall Dimension in mm: 185 x 235 x 65 ( L x B x H )

Instrument Weight: 1.6 kg (Approx.)
