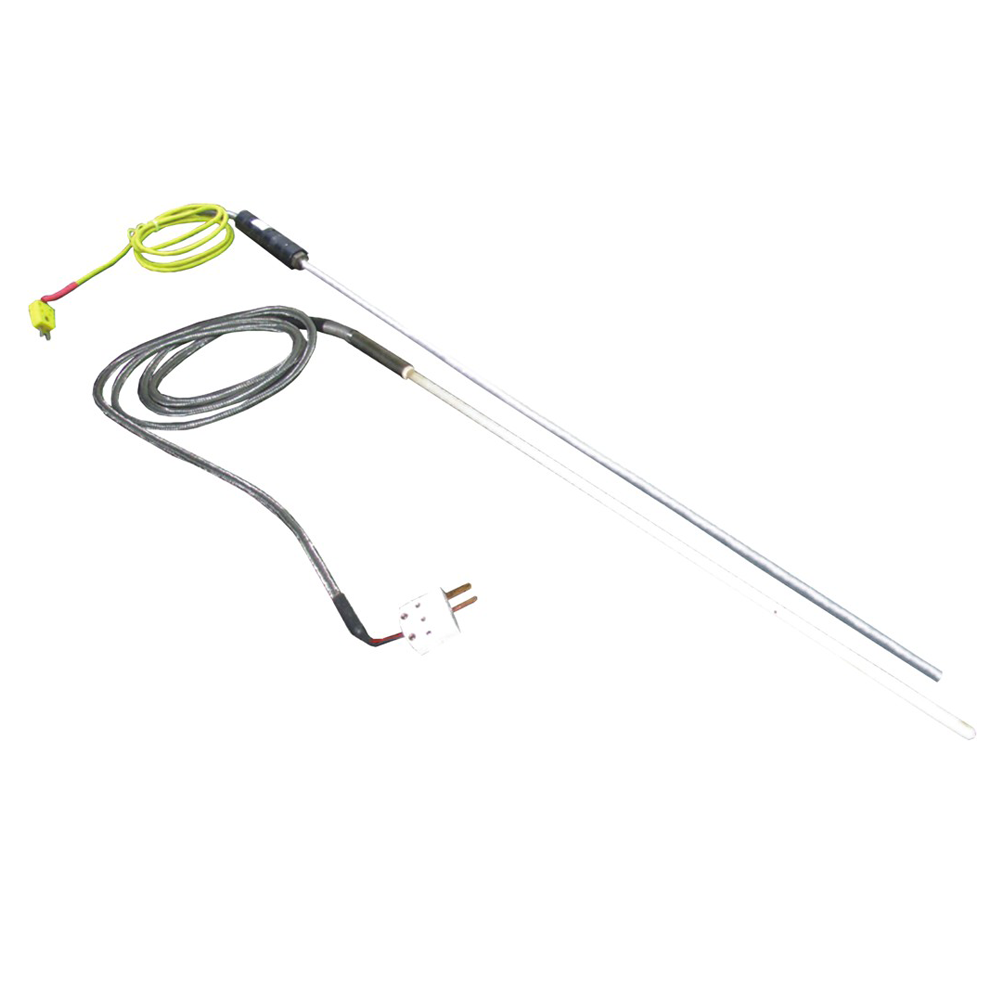

STANDARD THERMOCOUPLE R & S (without Cold Junction Compensation)

Send Inquiry

Request To Call Back

STANDARD THERMOCOUPLE R & S (without Cold Junction Compensation)

Name: STANDARD THERMOCOUPLE R & S (without Cold Junction Compensation)
Brand: SANSEL INSTRUMENTS & CONTROLS
Price: 75000 INR
Availability: InStock

Price 75000 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

STANDARD THERMOCOUPLE R & S (without Cold Junction Compensation) Specification

Sensor Type
Type R and Type S Thermocouple

Cable Length
2 meters (customizable)

Interface
Bare Lead Wires

Power Consumption
Passive Sensor (No Power Required)

IP Rating
IP65

Features
High-temperature stability, Oxidation resistance, Long life

Response Time
5 seconds

Sensitivity
~10 V/C

Operating Temperature
0C to 1600C

Mounting Type
Fixed/Probe

Signal Type
Analog (Thermocouple Voltage)

Measurement Range
0C to 1600C

Application
Furnaces, Kilns, Metal Processing, Glass Industry

Wireless
No

Product Type
Standard Thermocouple R & S (without Cold Junction Compensation)

Material
High-purity Platinum and Platinum-Rhodium Alloys

Input
Thermocouple Signal

Output
Millivolt Signal (mV)

Function
Temperature Measurement

Usage
Industrial and Laboratory Applications

Accuracy
1.5C at 0C to 1600C

Resolution
0.1C

Voltage
Typically 6 mV at 1000C (signal voltage)

Weight
Approx. 200 grams

Probe Diameter
6 mm (standard, customizable on request)

Calibration
Factory Calibrated

Sheath Material
Ceramic or Platinum Alloy

Interchangeability
±0.5°C

Long-term Drift
Minimal

Environmental Conditions
Suitable for harsh process environments

Connector Type
Standard Thermocouple Plug (optional)

Storage Temperature
-20°C to 80°C

Extended Lead Option
Available up to 10 meters

Automation Compatible
Yes

Thermoelectric Stability
Excellent for continuous use up to 1600°C

Protection Tube
High Purity Alumina or Platinum

Compliance
IEC 60584-1

STANDARD THERMOCOUPLE R & S (without Cold Junction Compensation) Trade Information

Minimum Order Quantity
2 Pieces

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO/IEC 17025 Accredited 5 point

About STANDARD THERMOCOUPLE R & S (without Cold Junction Compensation)

Model: MTC - 01

Range:

(a) 200 to 1500C

(b) 100 to 1200C

Type: R , S

Accuracy: Class 1 (0.6C or 0.1% of Temperature which ever is greater)

Temperature Scale: ITS-90

Sheath material: K-99 grade ceramic

Thermocouple wire dia: 0.5mm

Probe dia & Length: 6mm OD & 450mm Length

Cable Length: 1.5 meter long with male female, Miniature Omega connector

Handle Dimension: 20mm OD & 100mm Length

Calibration certified: ISO/IEC 17025 Accredited 5 point

Precision High-Temperature Measurement

Engineered for environments requiring exceptional accuracy, the Thermocouple R & S delivers stable and reliable thermoelectric signals from 0C to 1600C. Its design utilizes premium platinum group alloys and advanced calibration to ensure minimal drift and long service life even under harsh operational conditions. The smooth integration with automation systems enhances process control and monitoring in a variety of industrial settings.

Robust Construction for Demanding Applications

The sensor's ceramic or platinum alloy sheath, complemented by a high-purity alumina or platinum protection tube, offers excellent resistance to oxidation and corrosion. IP65-rated housing and optional lead customization up to 10 meters enable flexible installation in challenging locations. Its fixed/probe mounting options and rapid 5 seconds response time make it an indispensable tool for real-time industrial temperature surveillance.

FAQ's of STANDARD THERMOCOUPLE R & S (without Cold Junction Compensation):

Q: How is the Standard Thermocouple R & S installed for industrial applications?

A: The Standard Thermocouple R & S can be installed using its fixed or probe mounting options, allowing secure placement within furnaces, kilns, or industrial process lines. Simply insert the sheath into the measurement zone and connect the bare leads or optional thermocouple plug to the monitoring system.

Q: What benefits does the high-purity Platinum and Platinum-Rhodium alloy provide?

A: These materials offer superior thermoelectric stability, corrosion, and oxidation resistance, enabling reliable and accurate temperature monitoring even at extreme temperatures up to 1600C, thus ensuring long operational life with minimal drift.

Q: When should I consider customizing the probe diameter or cable length?

A: Customization is recommended when your installation environment has specific spatial constraints or requires extended reach. You can request probe diameters and cable lengths suited to your system's requirements to ensure optimal performance and convenient connectivity.

Q: Where is this thermocouple commonly used?

A: This sensor serves environments with high thermal demands, such as furnaces, kilns, metal processing, the glass industry, and laboratories-particularly where continuous, accurate, and robust temperature measurement is paramount.

Q: What is the process for calibrating the Thermocouple R & S?

A: Each unit is factory calibrated to comply with IEC 60584-1 standards. No initial calibration is necessary; however, periodic recalibration may be undertaken in-house if your quality system requires ongoing verification.

Q: How does the thermocouple signal interface with automation systems?

A: The sensor outputs a standard millivolt (mV) analog signal via bare lead wires or an optional plug, compatible with automation and temperature controllers, facilitating seamless integration into process control environments.

Q: What advantages does the IP65 rating offer for this thermocouple?

A: An IP65 rating ensures the thermocouple assembly is protected against dust ingress and low-pressure water jets from any direction, making it highly suitable for challenging and harsh industrial operating conditions.
