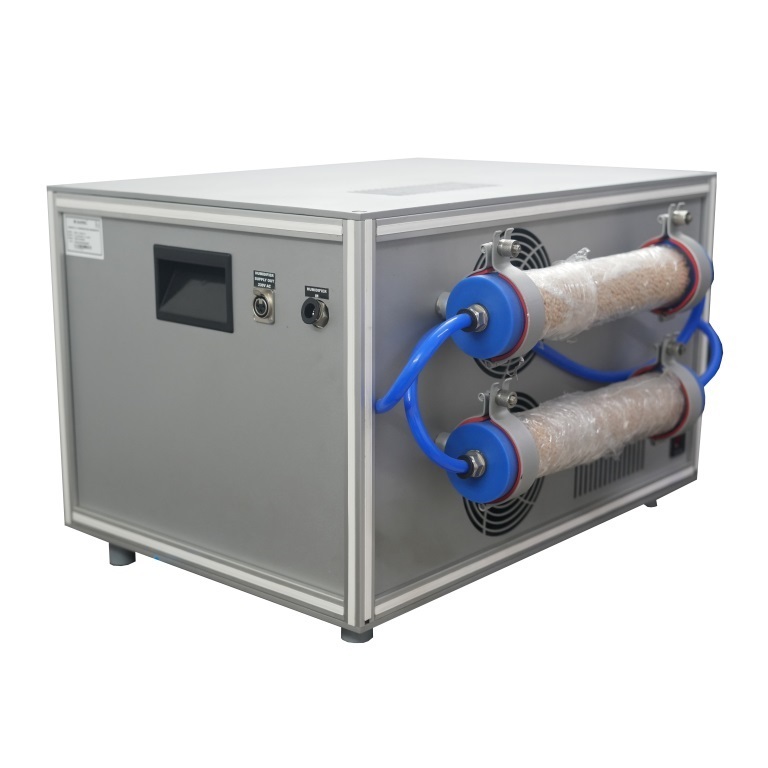

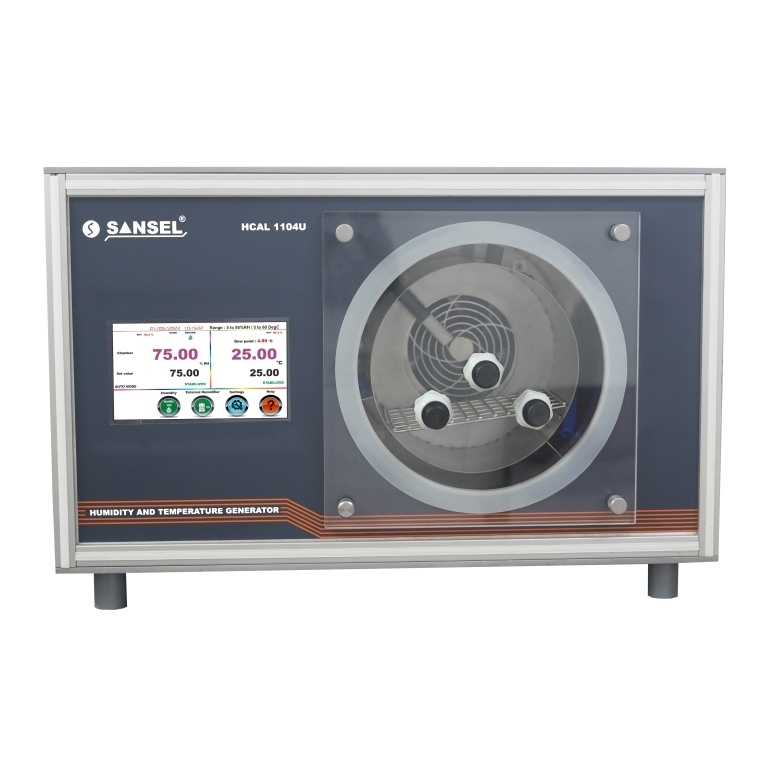

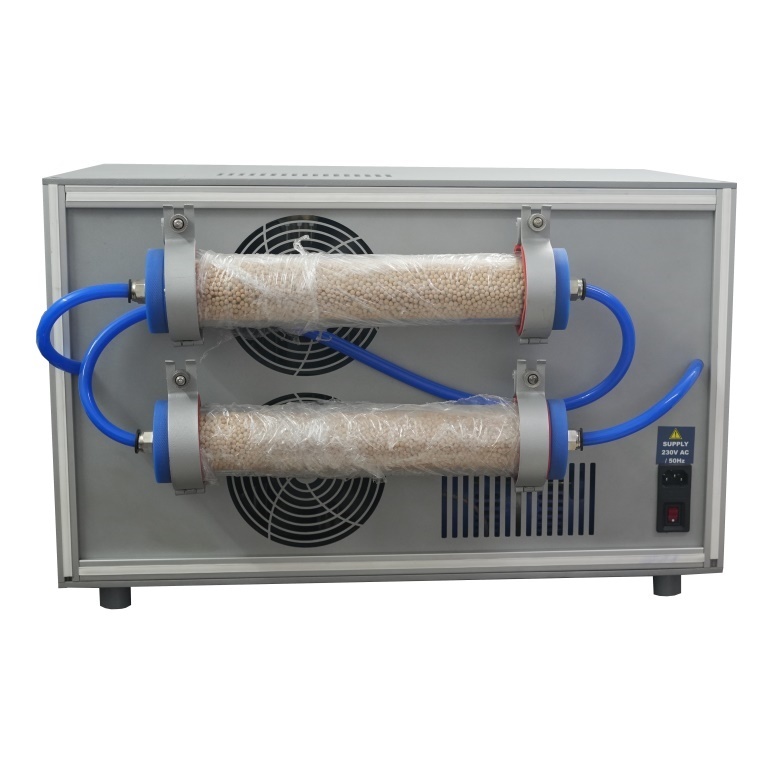

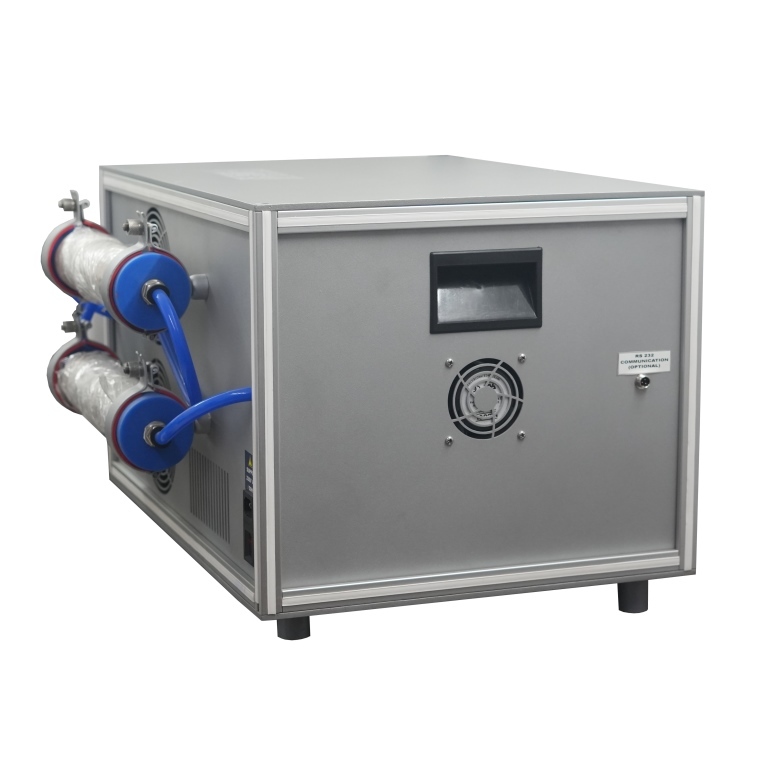

PRECISION HUMIDITY & TEMPERATURE GENERATOR

About PRECISION HUMIDITY & TEMPERATURE GENERATOR

Model: HCAL 1104U

Display: 7 True colour TFT LCD Display with Touch screen

Control Range: 5 to 60C / 3 to 95 % RH

Dew point Temperature range (psychometric calculated): -30C to 45C

Psychometric calculated indication:

• Dew / Frost point ( Dp / Fp )
• Wet Bulb Temperature ( Tw )
• Vapour partial pressure ( E )
• Vapour Saturation pressure ( Ew )
• Mixing ratio by weight (dry) ( g / kg )
• Enthalpy ( H ) ( KJ / kg )
• Specific Humidity (moisture) ( g / kg )
• Absolute Humidity (moisture) ( g / m)
• Volume mixing ratio (dry) ( ppm ).

Calculation method: WMO method

Resolution: 0.01 C / 0.01% RH

Display stability: Better than  0.03 C /  0.15% RH

Chamber stability 25C

• Temperature: 0.1C
• Humidity:  0.3 % RH.

Chamber Uniformity 25C

• Temperature: 0.2C
• Humidity:  0.5 % RH.
•


Test sensor insert port: Interchangeable Acrylic door is provided on front side of the chamber with pg21 gland (cable or sensor size range from 13 to 18mm) x 3nos.

External Humidifier Water tank capacity: 6 litres (approx.) (NOTE : 3 litre filling is enough for our application)

Humidifier Liquid: Distilled water

Humidifying Time: 2 %RH / sec (50 to 90 % RH)

Dehumidifying Time: 6 %RH / sec (50 to 10 % RH)

Test chamber area:230mm DIA x 170mm D (Approx)

Power supply:230V AC  10% / 50Hz (Optional 110V AC)

Power Consumption:1000 VA

Construction:Inner chamber SS 310 / outer MS powder coating

Overall Dimension: 436 mm LX 676 mm W X 368 mm H (Approx.)

Weight: 44 kg (without Accessories) + 6 kg (standard accessories) (Approx.)
