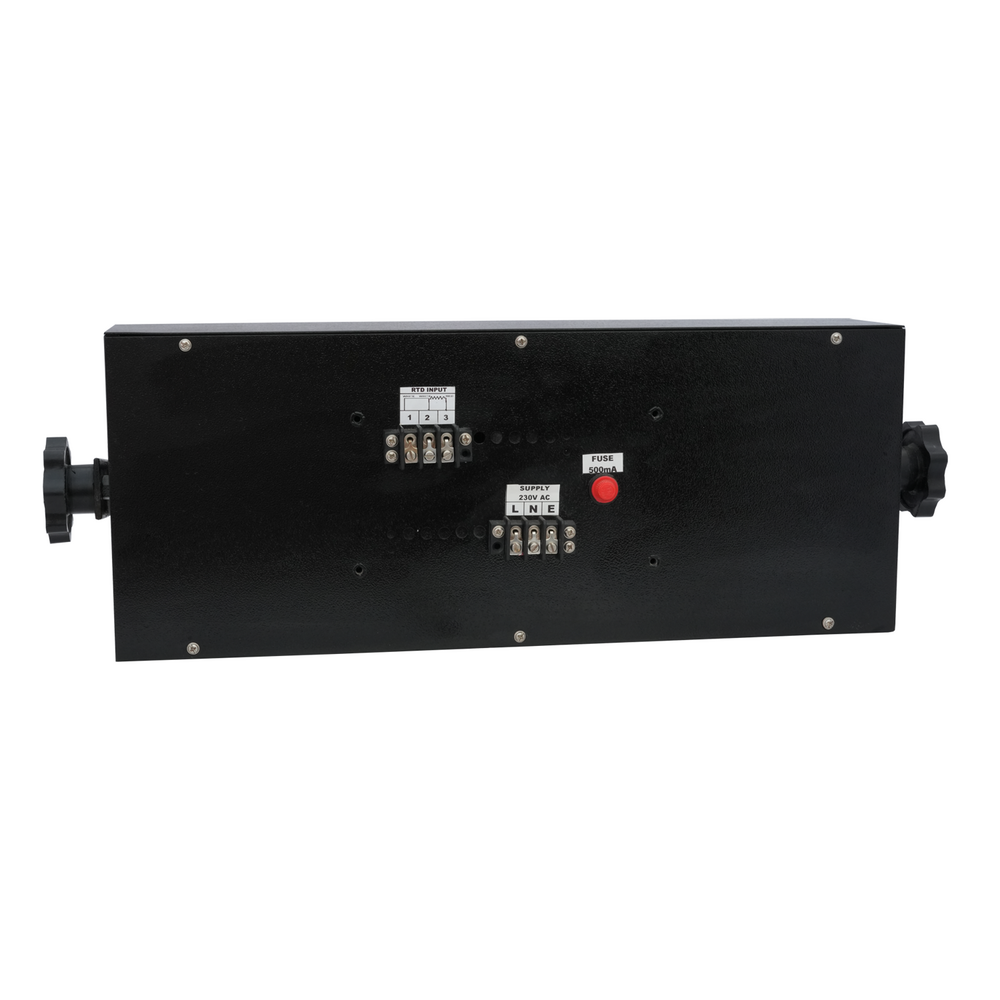

8" 4 DIGIT JUMBO PROCESS INDICATOR - PI 541 C1

8" 4 DIGIT JUMBO PROCESS INDICATOR - PI 541 C1 About

• Model PIJ  542 C1
• Display 2 or 4 or 8 4 Digit 7 segment RED LED
• Accuracy  01  of FS
• Analog inputs 4  20 mA 0  20 mA 0 to 70 mV 0 to 10 V DC 0  400  H  L Limit Programmable
• Temperature inputs RTD  PT 100 Thermocouple  J K R S T B N E
• Analog display range 1999 to 9999 H  L Limit programmable
• Temperature range H  L Limit programmable
• RTD  PT 100 1999 to 8500C  1999 to 9999 F
• TC  J  200 to 1200C  328 to 2192F
• TC  K  200 to 1372C  327 to 2501F
• TC  R  40 to 1768C  40 to 3214F
• TC  S  40 to 1768C  40 to 3214F
• TC  T  200 to 400C  328 to 752F
• TC  B 300 to 1820C  572 to 3308F
• TC  N 200 to 1300C  327 to 2372F
• TC  E  200 to 9999C  327 to 1832F
• Unit selection C  F  for RTD  TC inputs
• Analog input display resolution 0001  001  01  1 Selectable
• Temperature resolution 01  1 C  F optional 001 for RTD  PT 100 IP up to 9999 C Factory presetable
• Filter constant 1  100 Adjustable
• Display hold option Peak hold  average any one selectable
• Hold delay 0  999 sec selectable
• Relay Output optional 2 Relay 5A rated with 6 Relay Status Selection Adjustable Hysteresis Cyclic Delay
• Re Transmission optional Opto Isolated Analog Output 4  20 mA or 0  10V DC
• PC communication optional RS 485 2 wire MODBUS RTU protocol
• PC interface software Optional
• Sensor Supply external 24 V DC 10  100 mA
• Power supply 230 V AC  50 Hz
• Overall dimension 760 x 320 x 85 or 1125 x 320 x 85 L x H x D in mm Approx
• Housing  MS Powder coating

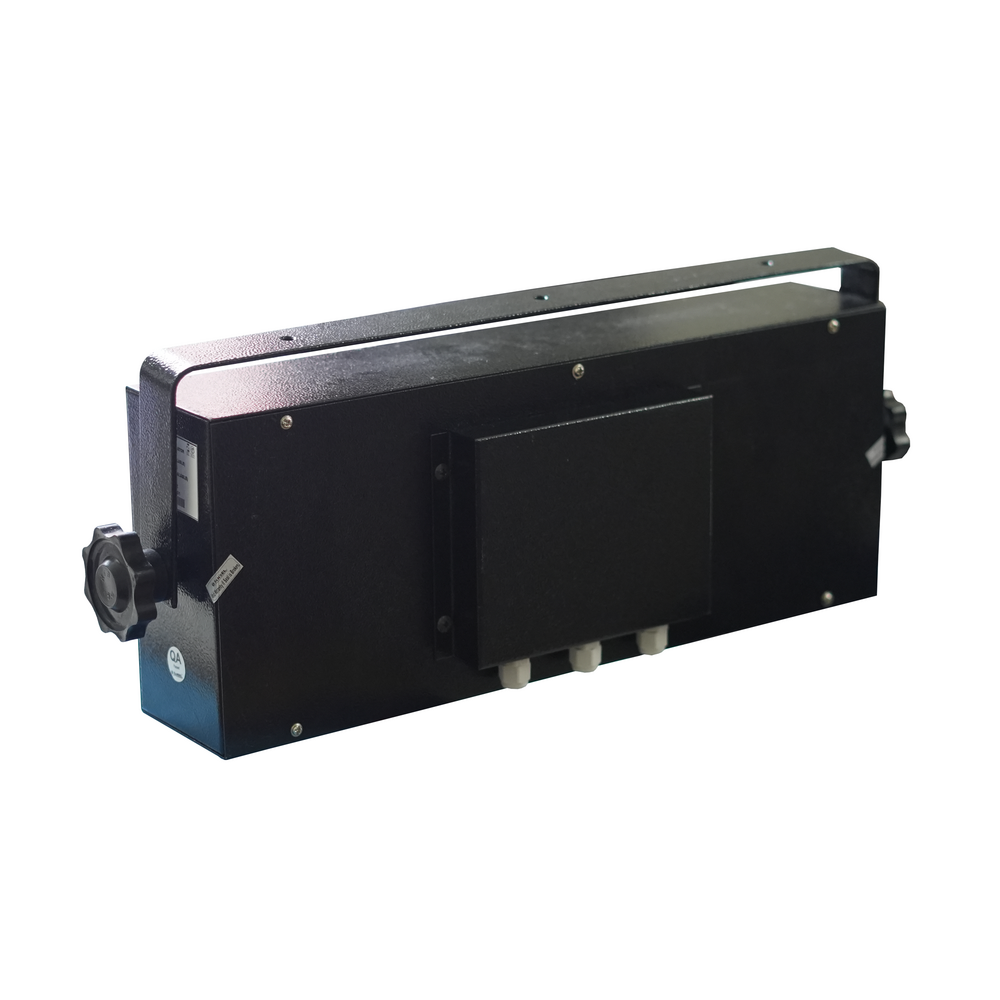

• Mounting Wall or sealing with 360 rotatable clamp
• Operating environment 0  50C  5 to 95 RH Non condensing
• Weight Approx 75 or 85 kg
