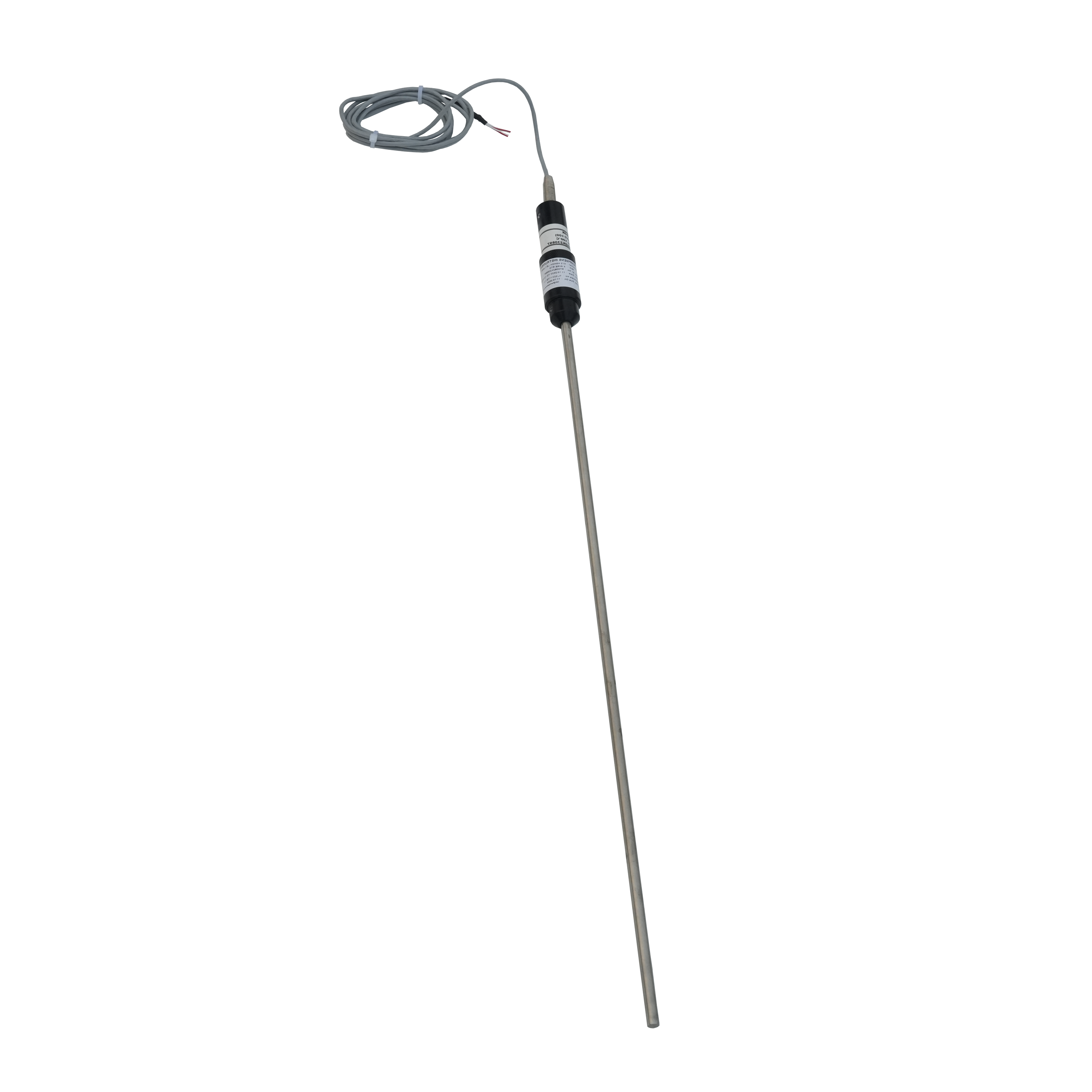

Semi Standard Platinum Resistance

81250 INR/Piece

Get a Price/Quote

Product Details:

Product Type Semi Standard Platinum Resistance
Dimension (L*W*H) 80mm(H) x 750mm(W) x 80mm(D) Millimeter (mm)
Weight 2.7 Kilograms (kg)
Voltage 110-220 Volt (v)
Usage For Industrial Use
Application Used as a reference standard to calibrate various Temperature probes, Drywell calibrator, Liquid bath, Etc.,. In all type of Industries and calibration Laboratories.
Function For Industrial Use
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Semi Standard Platinum Resistance Price And Quantity

Minimum Order Quantity 5 Piece
Price 81250 INR/Piece

Semi Standard Platinum Resistance Product Specifications

Usage For Industrial Use
Application Used as a reference standard to calibrate various Temperature probes, Drywell calibrator, Liquid bath, Etc.,. In all type of Industries and calibration Laboratories.
Weight 2.7 Kilograms (kg)
Function For Industrial Use
Product Type Semi Standard Platinum Resistance
Dimension (L*W*H) 80mm(H) x 750mm(W) x 80mm(D) Millimeter (mm)
Voltage 110-220 Volt (v)

Semi Standard Platinum Resistance Trade Information

FOB Port CHENNAI
Delivery Time 4 Week
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO 9001: 2015, ISO / IEC 17025 Accredited calibration certificate.

Product Description

Type: PT 100

Temperature Range: (a) -200 to 660C, (b) -80 to 600C

Temperature co-efficient: 0.00385 Î / Î /C

Stability: RO typical drift < 0.05C after 100 hrs at 600 C

Thermal shock: RO typical drift < 0.01C after 100 times from 25 to 600 C

Vibration: withstand 10 to 2000Hz at 20 G™s

Recommended measuring current: 1mA

Sheath Diameter: 6mm

Sheath Length: 450mm

Cable Length: 1500mm

Outer Sheath: SS-316

End Connection: Flying Lead, 4 wire

Case dimension (Approx.): 80mm(H) x 750mm(W) x 80mm(D)

Gross weight (Approx.): 2.75kg (6 lbs)

Calibration Option: 5 point NABL (or) Fixed point ITS-90 Resistance Vs Temperature chart

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Calibrators' category

High Temperature Calibrator Price : 356250 INR/Piece Minimum Order Quantity : 1 Color : blue Product Type : Temperature calibrator Dimension (L*W*H) : 250 L X 410 W X 625 + 90 (wheel) H (mm) Millimeter (mm) Weight : 57 kg Kilograms (kg) Usage : For Industrial use Power : 230V AC 50/60Hz (Optional 110V AC)

Send Inquiry

Dry Block Temperature Calibrator Price : 115000 INR/Piece Minimum Order Quantity : 1 Color : blue Product Type : Temperature calibrator Dimension (L*W*H) : 340 x 175 x 425 (L x B x H) Millimeter (mm) Weight : 18 kg Kilograms (kg) Usage : For Industrial use Power : 230V AC 10% / 50Hz (Optional 110V AC) Volt (v)

Send Inquiry

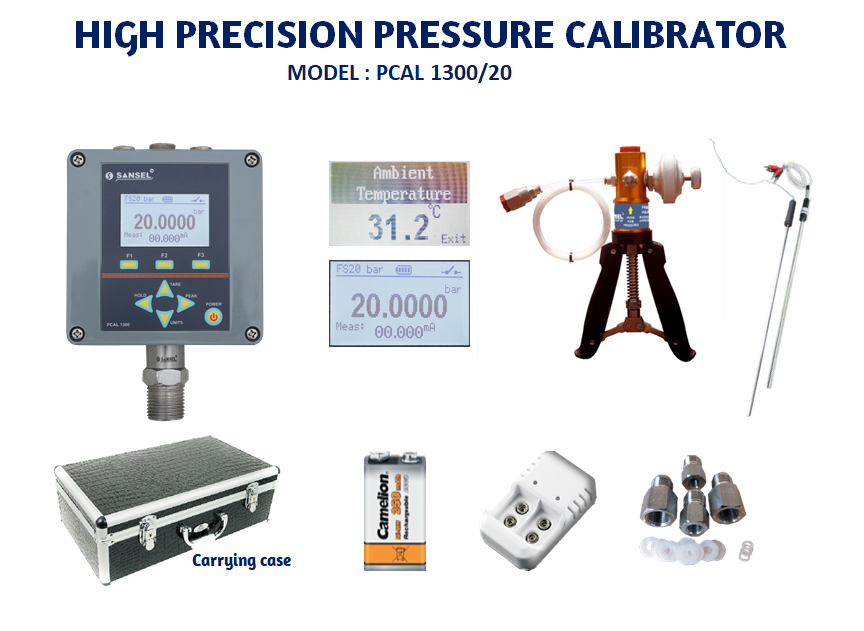

High Precision Pressure Calibrator PCAL 1300/20 Price : 34375.00 INR/Piece Minimum Order Quantity : 1 Color : Gray Product Type : calibrator Dimension (L*W*H) : 100*100*55 Millimeter (mm) Weight : 400 Grams (g) Usage : industrial and lab usage
