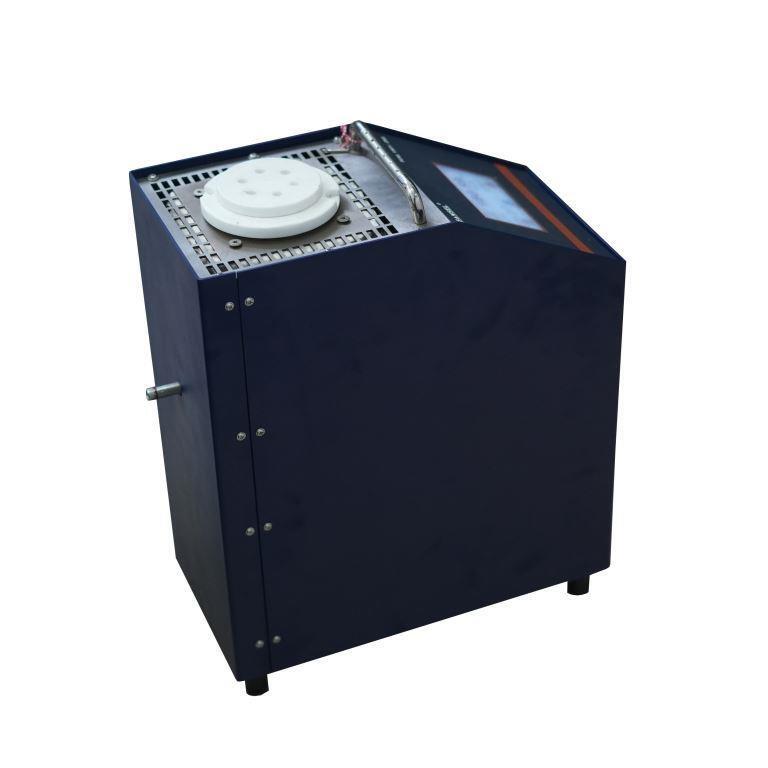

LIQUID TEMPERATURE CALIBRATOR

156250 INR/Piece

Get a Price/Quote

Product Details:

Dimension (L*W*H) 340 x 175 x 425 (L x W x H) mm Millimeter (mm)
Power 230V AC or 110V AC 50/60Hz
Usage For Industrial use
Weight 12 kg Kilograms (kg)
Product Type Liquid Temperature calibrator
Color Blue
Accuracy Better than 0.3C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LIQUID TEMPERATURE CALIBRATOR Price And Quantity

Minimum Order Quantity 1 Piece
Price 156250 INR/Piece

LIQUID TEMPERATURE CALIBRATOR Product Specifications

Color Blue
Product Type Liquid Temperature calibrator
Accuracy Better than 0.3C
Usage For Industrial use
Power 230V AC or 110V AC 50/60Hz
Dimension (L*W*H) 340 x 175 x 425 (L x W x H) mm Millimeter (mm)
Weight 12 kg Kilograms (kg)

LIQUID TEMPERATURE CALIBRATOR Trade Information

FOB Port CHENNAI
Delivery Time 4 Week
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India

Product Description

Temperature Range: Amb. +5 to 250C

Resolution: 0.01 C

Stability: ï 0.03 C

Accuracy: better thanï 0.3 C

Stabilization Time: 45 minutes

Heating time: 60 mins (Amb. to 250C)

Cooling time: 90 mins (250 to 50C )

Measure inputs: RTD-PT 100, PT 1000 / TC-J, K, R, S, T, E, B , N / mA /mV / ohms

Chamber Dimension: 80 x 140 mm (dia X depth)

Testing area: 60 x 120 mm (dia x depth)

Temperature Medium: Silicon Oil (200cs recommended)

PC Interface: RS 485 (optional)

Power Supply: 230V ACï10% / 50Hz (Optional 110V AC)

Power Consumption: 1200 VA

Switch test: Provided

Dimension in mm: 340x 175 x 425 (L* W * H) (Approx.)

Weight (Approx.): 12 kg (without oil)

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Calibrators' category

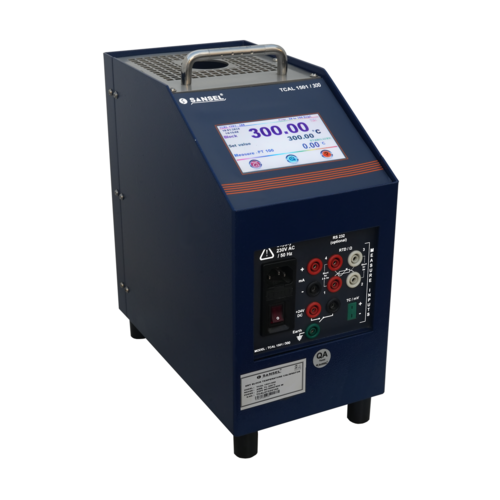

DRY BLOCK TEMPERATURE CALIBRATOR Price : 143750 INR/Piece Minimum Order Quantity : 1 Product Type : Temperature calibrator Weight : 7.5 Kilograms (kg) Dimension (L*W*H) : 285 x 155 x 330 Millimeter (mm) Usage : For Industrial and Lab use Application : Food industries, Pharmaceutical Industries, R & D laboratories, Automobiles industries, Calibrators laboratories etc.,. Color : Blue Power : 230V AC 10% / 50Hz (optional 110V AC)

Send Inquiry

Semi Standard Platinum Resistance Price : 81250 INR/Piece Minimum Order Quantity : 5 Product Type : Semi Standard Platinum Resistance Weight : 2.7 Kilograms (kg) Dimension (L*W*H) : 80mm(H) x 750mm(W) x 80mm(D) Millimeter (mm) Usage : For Industrial Use Application : Used as a reference standard to calibrate various Temperature probes, Drywell calibrator, Liquid bath, Etc.,. In all type of Industries and calibration Laboratories.

Send Inquiry

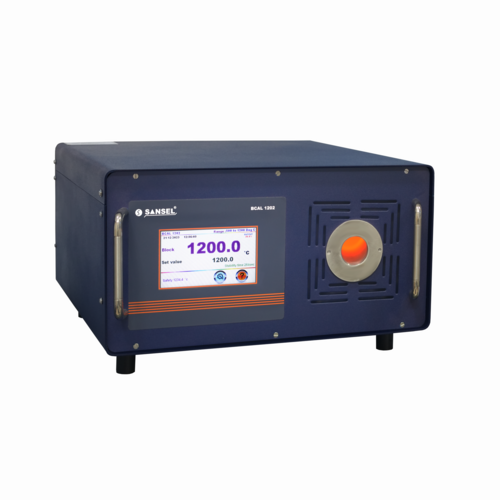

Infra Red Black Body Temperature Calibrator - BCAL 1202 Price : 156250 INR/Piece Minimum Order Quantity : 1 Product Type : calibrator Weight : 12kg Kilograms (kg) Dimension (L*W*H) : 350 x 352 x 210 (L x B x H) Millimeter (mm) Usage : For Industrial use Application : Energy Production and Energy Distribution Sectors, Glass, Ceramic, Semi Conductor Industries, Steel Material Processing Industries, Calibrators laboratories etc.,. Color : Blue Power : 230V AC 10% / 50Hz (optional 110V AC) Volt (v)
