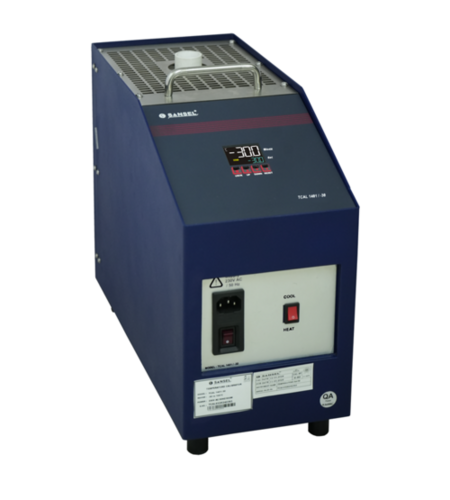

MINIATURE DRY BLOCK TEMPERATURE CALIBRATOR

Name: MINIATURE DRY BLOCK TEMPERATURE CALIBRATOR
Brand: SANSEL INSTRUMENTS & CONTROLS
Price: 75000 INR
Availability: InStock

Price 75000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MINIATURE DRY BLOCK TEMPERATURE CALIBRATOR Specification

Accuracy
±0.5 °C

Connection
Standard mains supply, removable insert for sensors

Pressure
Atmospheric (not applicable)

Function
Temperature calibration of sensors and instrumentation

Size
Compact/Miniature Design (approx. 180 x 120 x 160 mm)

Weight
Approx. 3 kg

Display
Digital LED

Temperature Range
Ambient +5°C to 400°C

Material
Stainless steel block

Insert Bore Size
Multi-hole insert for different sensor diameters

Safety features
Over temperature cut-off

Power Supply
230V AC, 50 Hz

Heating Time
Up to max temp in 12 minutes

Applications
RTD, Thermocouple, Thermistor, temperature probe calibration

Stability
±0.1 °C

Control
Microprocessor based PID controller

MINIATURE DRY BLOCK TEMPERATURE CALIBRATOR Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

MINIATURE DRY BLOCK TEMPERATURE CALIBRATOR About

Model: TCAL 1404/-15

Display: 2.8" True TFT with Touch screen

Temperature Range: -15 to 120C

Radial uniformity: (Better than) 0.03C

Resolution: 0.01 C

Stability: 0.03 C

Temperature readout: C

Heating time:

Amb to 120-->25min

-15 to Amb -->5 min

Cooling time:

Amb to -15 -->20min,

120 to 50-->8 min

Stabilization time: 10 mins

Well Dimension(dia. x height): 20 x 90 mm

Well immersion depth: 90 mm (throw hole)

Standard well holes in mm: 6.2 x 2nos

Power supply: 80 to 264VAC / 113 to 370VDC / 47 to 63Hz

Power consumption: 100 w

Overall Dimension in mm: 170 x 95 x 183 mm

Instrument Weight: 3.5 Kg

Compact Yet Powerful Calibration Solution

This miniature calibrator offers impressive capabilities in a highly compact footprint, making it convenient for both laboratory and on-site calibration needs. Its robust stainless steel block and multi-hole insert mean you can calibrate multiple types of sensors without needing several devices. The digital LED display and PID controller provide precise temperature control, ensuring your readings are both accurate and consistent.

Fast Performance and Easy Operation

With a rapid heating time-reaching maximum temperature in just 12 minutes-this calibrator is designed for efficiency. Simply insert your sensor into the removable insert, set the desired temperature using the user-friendly controls, and benefit from stable calibration conditions. The device operates on standard 230V AC, 50 Hz mains, making it easy to set up anywhere.

Safe and Reliable for Diverse Applications

Safety is paramount, which is why an over-temperature cut-off feature is included to protect both the instrument and your sensors. This calibrator excels in routine maintenance, testing, and verification in industries and labs, ensuring your temperature measurement equipment meets quality and regulatory requirements.

FAQ's of MINIATURE DRY BLOCK TEMPERATURE CALIBRATOR:

Q: How do I use the miniature dry block temperature calibrator for calibrating sensors?

A: To use the calibrator, insert your temperature sensor into the appropriately sized hole of the removable block insert. Power on the device, set the desired temperature using the digital controls, and wait for the block to stabilize (typically within 12 minutes). Once stable, measure your sensor's reading against the displayed value for calibration.

Q: What types of sensors can I calibrate with this instrument?

A: This calibrator is suitable for RTDs, thermocouples, thermistors, and various temperature probes, thanks to its multi-hole insert accommodating different sensor diameters.

Q: When should I perform calibration using a dry block temperature calibrator?

A: Calibration should be conducted periodically, according to your facility's quality policies, after significant sensor use, or whenever a sensor's accuracy is in doubt to ensure precise temperature measurement and compliance with standards.

Q: Where can this calibrator be used effectively?

A: Due to its compact and lightweight design, the calibrator is suitable for laboratories, industrial sites, and field environments-anywhere precise sensor calibration is required.

Q: What is the process for changing the insert to accommodate different sensor sizes?

A: The insert is removable and can be easily swapped with another block featuring different bore sizes. Simply allow the device to cool, remove the existing insert, and replace it with the desired one for your sensor type.

Q: What are the benefits of using this calibrator over other methods?

A: This calibrator provides a fast, stable, and accurate temperature environment, ensuring high-quality calibration with minimal setup and reduced risk of contamination compared to liquid baths. The digital controls and safety features enhance both efficiency and instrument protection.
