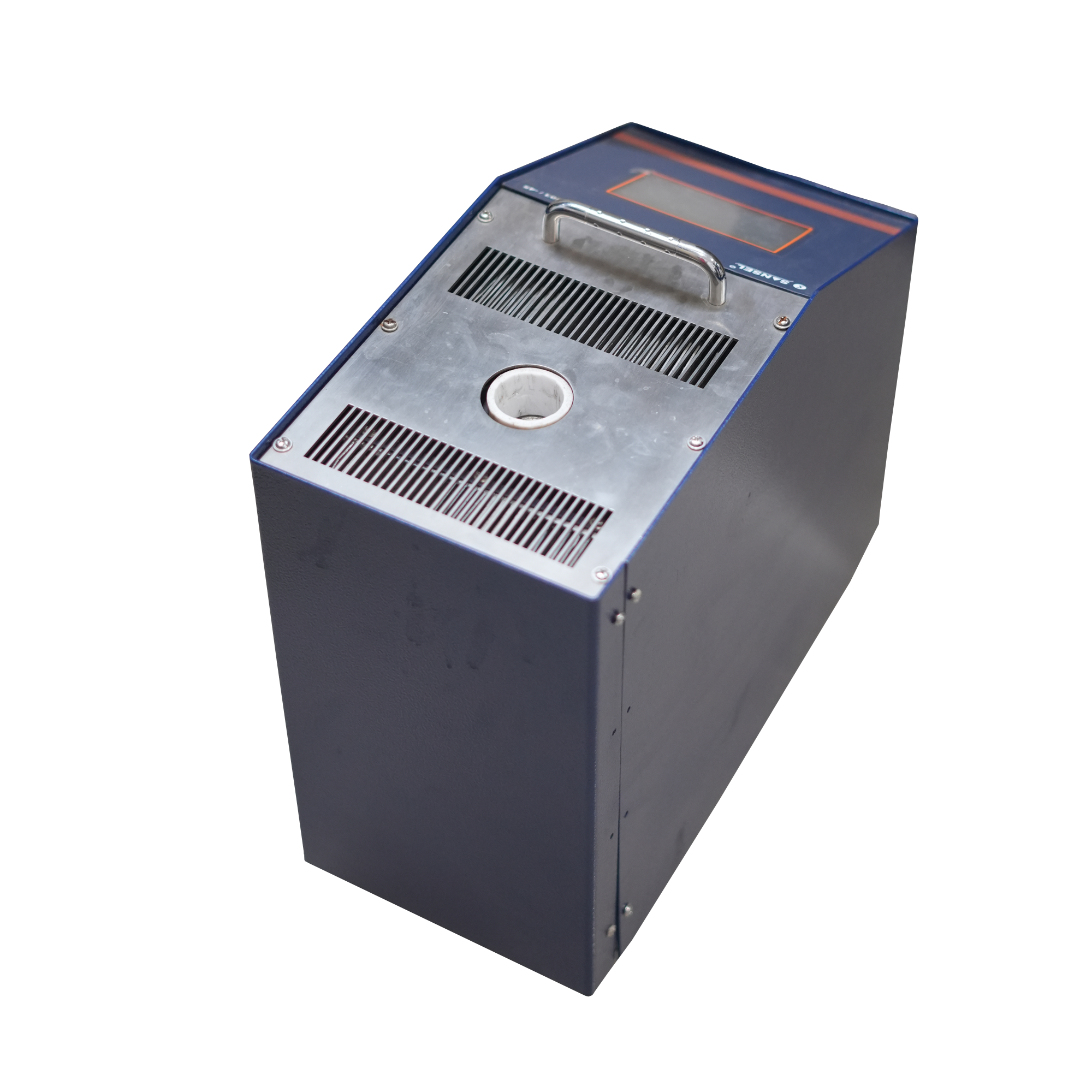

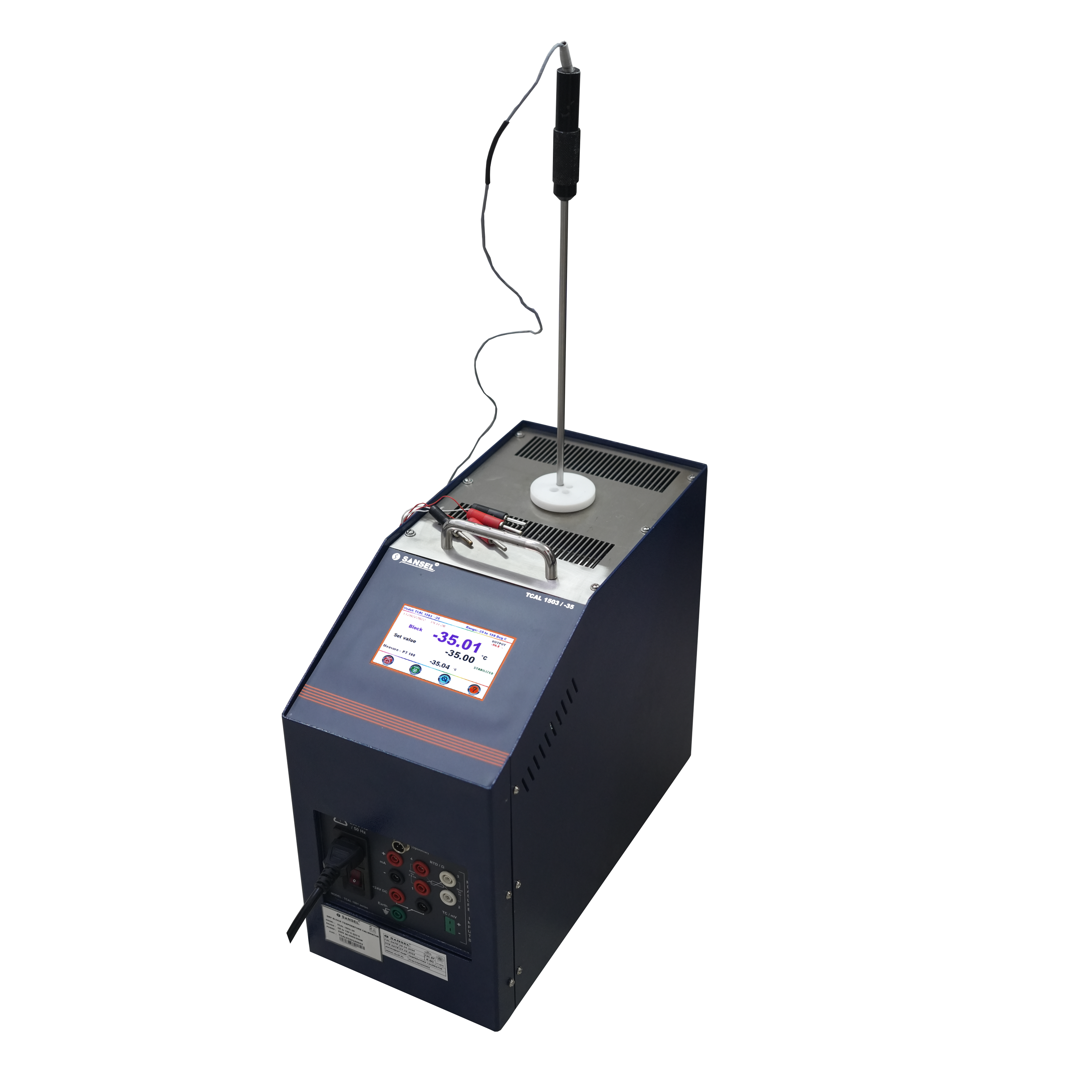

DRY BLOCK TEMPERATURE CALIBRATOR

DRY BLOCK TEMPERATURE CALIBRATOR About

MODEL: TCAL 1501 / -30

Display: 4.3 inch True TFT DISPLAY with touchscreen

Temperature Range : - 30Cto 100 C

Resolution: 0.01 C

Stability: ï 0.02 C

Uniformity: ï 0.2 C

Heating time (mins): 20 (Amb. to 100C)

Cooling time (mins): 25 (25 to -30C) (100 to 25C)

Stabilization Time: 10 minutes

Well Dimension (dia. x depth): 22 x 120 mm

Standard Well Hole in mm: 5.2, 6.2, 6.2

Measure inputs: RTD-PT 100 / TC, -J, K, R, S, T, E, B, N /mA /mV/ohms

Power Consumption: 500 VA

Power Supply: 110 or 230V AC 50/60 HZ

PC interface: RS 485 (optional)

Switch test: Provided

Dimension (L*W*H)(Approx.): 409 L x 178 W x 357 H (mm)

Weight: 12.5 kg (without well insert & Carrying case) (Approx.)
