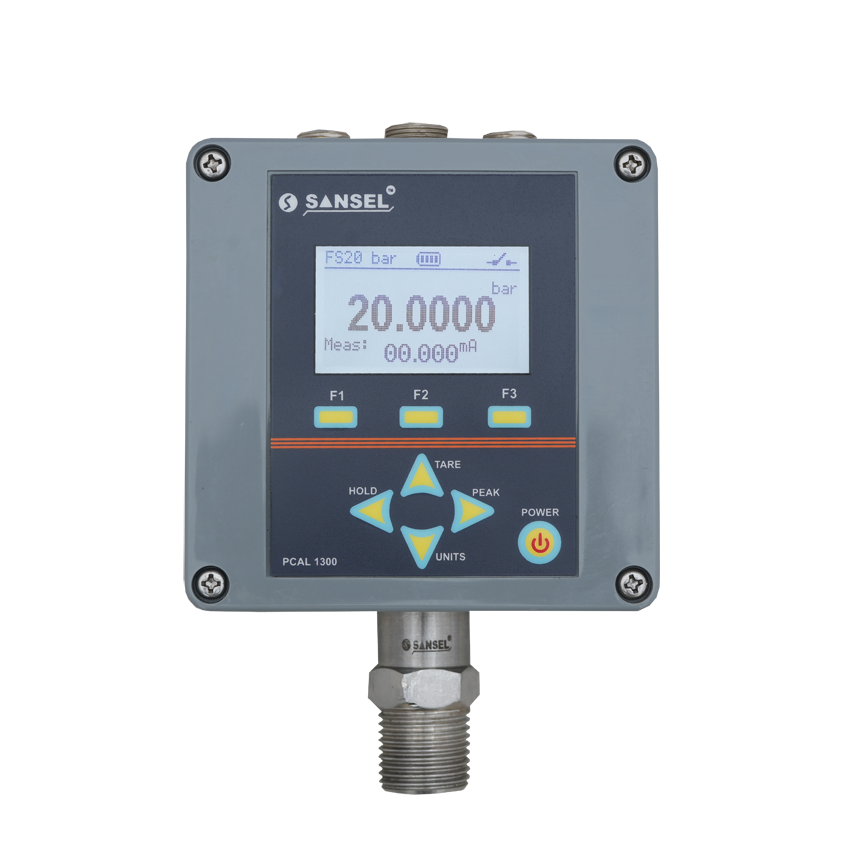

High Precision Pressure Calibrator PCAL 1300/20

High Precision Pressure Calibrator PCAL 1300/20

34375.00 INR/Piece

Get a Price/Quote

Product Details:

Product Type calibrator
Weight 400 Grams (g)
Dimension (L*W*H) 100*100*55 Millimeter (mm)
Color Gray
Usage industrial and lab usage
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

High Precision Pressure Calibrator PCAL 1300/20 Price And Quantity

Minimum Order Quantity 1 Piece
Price 34375.00 INR/Piece

High Precision Pressure Calibrator PCAL 1300/20 Product Specifications

Usage industrial and lab usage
Product Type calibrator
Weight 400 Grams (g)
Dimension (L*W*H) 100*100*55 Millimeter (mm)
Color Gray

High Precision Pressure Calibrator PCAL 1300/20 Trade Information

Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India

Product Description

Model Pcal 1300 20 bar
Display 128 x 64 COG Graphic LCD with White LED Back light
Range bar 1 to 20 bar
Accuracy 005FS
Resolution bar 6 digit user selectable
Instrument Port 14 BSP Male x 10 mm long
Instrument dimension 100 x 100 x 55 WxHxD mm
Instrument Weight 400gms Appox
Stability time 1 to 2 mins
Pressure units selectable bar mbar Mpa kpa kgcm2 inHgcmHgmmHgmHo ftHoinHo cmHommHo
Pressure Zero One touch zero provided on front key
Pressure Peak Maximum minimum with user reset option
Pressure overflow FS X 2 Max
Pressure burst FS X3 Max
TempMeasure RTDPT 100 234 wire selectable
Temp Range 199999 to 850000
Switch test Provided
mA Measure 024 mA scalable
Display scale 99999 to 99999 counts for mA measure input
Display Hold One touch hold provided on front key
Power Supply 9V DC 5 200mAh Rechargeable battery with battery life 4hours
with out back lightor 9V DC adapter 230V AC supply operated
Pump Weight gmsApprox 700
Pc Interface RS 485
Pc Software Windows based semi automatic calibration software optional

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Calibrators' category

PRESSURE CALIBRATOR Price : 34375 INR/Piece Minimum Order Quantity : 1 Usage : For Industrial use Power : 9V DC 5% / 200mAh Rechargeable battery with battery life 4hours with out back light( or) 9V DC adapter /230V AC supply operated Volt (v) Weight : 400 g Grams (g) Color : Grey Dimension (L*W*H) : 100 x 100 x 55 (W x H x D) Millimeter (mm) Product Type : Pressure calibrator Application : Energy Production and Energy Distribution Sectors, Glass, Ceramic, Semi Conductor Industries, Steel Material Processing Industries, Calibrators laboratories etc.,. Accuracy : 0.05%FS %

Send Inquiry

LIQUID TEMPERATURE CALIBRATOR Price : 156250 INR/Piece Minimum Order Quantity : 1 Usage : For Industrial use Power : 230V AC or 110V AC 50/60Hz Weight : 12 kg Kilograms (kg) Color : Blue Dimension (L*W*H) : 340 x 175 x 425 (L x W x H) mm Millimeter (mm) Product Type : Liquid Temperature calibrator Accuracy : Better than 0.3C

Send Inquiry

DRY BLOCK TEMPERATURE CALIBRATOR Price : 143750 INR/Piece Minimum Order Quantity : 1 Usage : For Industrial and Lab use Power : 230V AC 10% / 50Hz (optional 110V AC) Weight : 7.5 Kilograms (kg) Color : Blue Dimension (L*W*H) : 285 x 155 x 330 Millimeter (mm) Product Type : Temperature calibrator Application : Food industries, Pharmaceutical Industries, R & D laboratories, Automobiles industries, Calibrators laboratories etc.,.

Send Inquiry

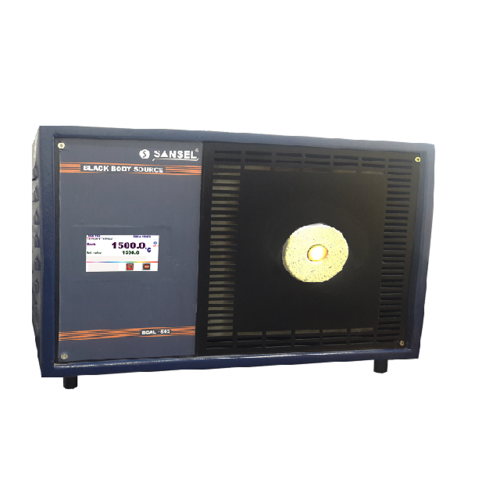

Infra Red Black Body high Temperature Calibrator Price : 368750 INR/Unit Minimum Order Quantity : 1 Usage : For Industrial and Lab use Power : 230V AC 10% / 50Hz (Optional 110V AC) Weight : 45 kg Kilograms (kg) Color : blue Dimension (L*W*H) : 580mm W x 450mm D x 390mm H Millimeter (mm) Application : Energy Production and Energy Distribution Sectors, Glass, Ceramic, Semi Conductor Industries, Steel Material Processing Industries, Calibrators laboratories etc.,.
