High Temperature Calibrator

356250 INR/Piece

Get a Price/Quote

Product Details:

Dimension (L*W*H) 250 L X 410 W X 625 + 90 (wheel) H (mm) Millimeter (mm)
Product Type Temperature calibrator
Application Energy - Production and Energy -Distribution Sectors, Glass, Ceramic, Semi Conductor Industries, Steel Material Processing Industries, Calibrators laboratories etc.,.
Power 230V AC 50/60Hz (Optional 110V AC)
Usage For Industrial use
Weight 57 kg Kilograms (kg)
Color blue
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

High Temperature Calibrator Price And Quantity

Price 356250 INR/Piece
Minimum Order Quantity 1 Piece

High Temperature Calibrator Product Specifications

Dimension (L*W*H) 250 L X 410 W X 625 + 90 (wheel) H (mm) Millimeter (mm)
Weight 57 kg Kilograms (kg)
Usage For Industrial use
Color blue
Power 230V AC 50/60Hz (Optional 110V AC)
Application Energy - Production and Energy -Distribution Sectors, Glass, Ceramic, Semi Conductor Industries, Steel Material Processing Industries, Calibrators laboratories etc.,.
Product Type Temperature calibrator

High Temperature Calibrator Trade Information

FOB Port CHENNAI
Delivery Time 4 Week
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications ISO 9001 : 2015

Product Description

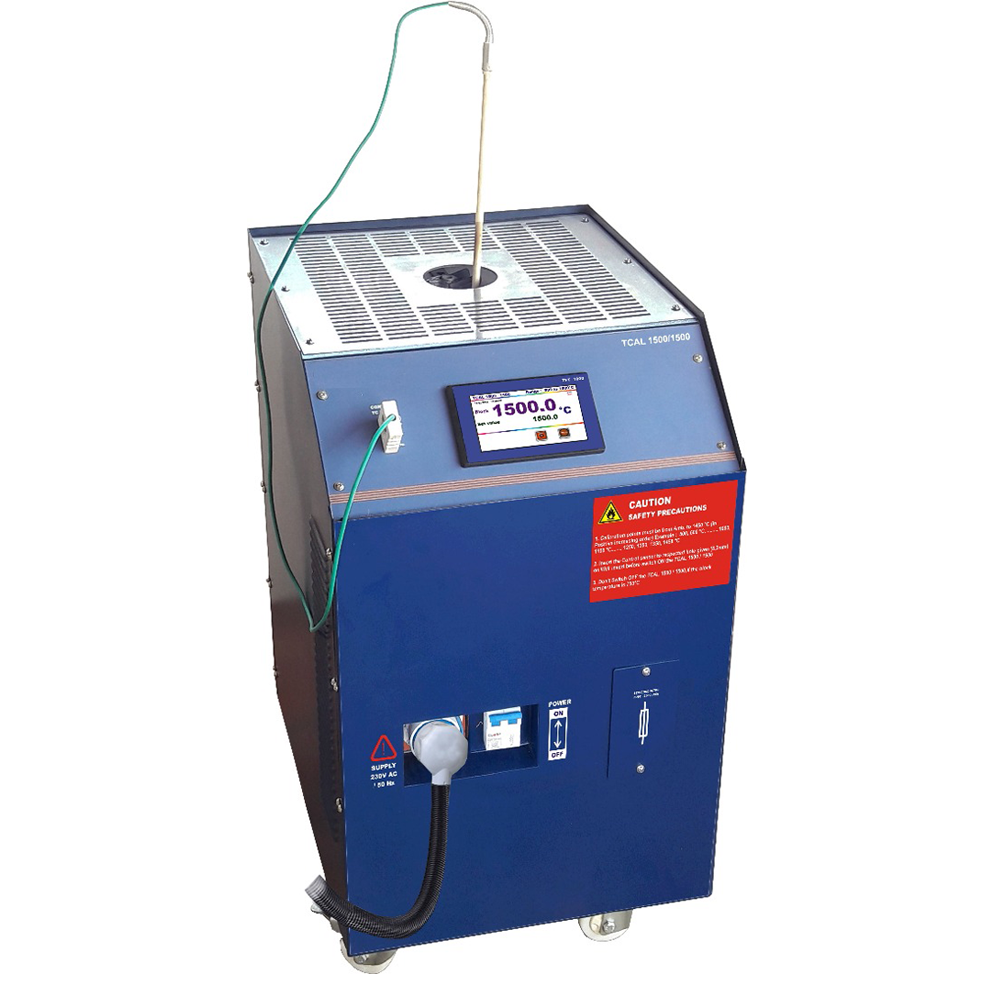

MODEL: TCAL 1500 / 1500

Display: 4.3 inch True TFT display with touchscreen

Temperature Range: 500 C to 1500 C

Resolution: 0.1 C

Stability : ï 0.5 C

Radial Uniformity: better than ï 0.5 % of reading

BathTemperature Control: Digital Temperature Controller with Auto-Tune PID algorithm

Heating Time:3 Hrs ( Amb. to 1500 C)

Time to Stabilize: 30 (mins)

Well Dia: 50mm

Well Hole Depth: 240mm

Thermo Well Holes: 6, 8, 10, 14 in mm (Approx)

PC Interface: RS 485 (optional)

Power Supply : 230V AC 50/60Hz (Optional 110V AC)

Power Consumption: 3500VA

Dimension (L x W x H): 250 L X 410 W X 625 + 90 (wheel) H (mm)

Instrument Weight (Approx) : 57 kg (Approx.) with well insert

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Calibrators' category

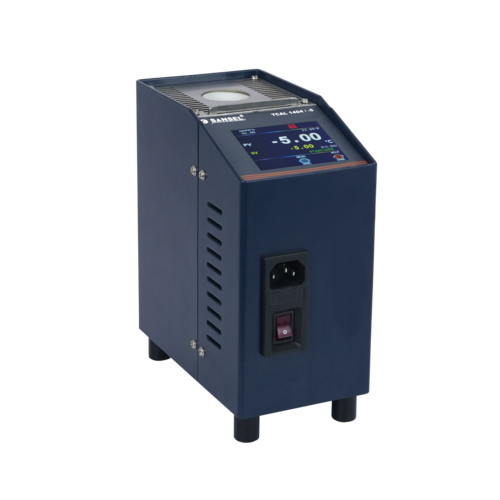

DRY BLOCK TEMPERATURE CALIBRATOR Price : 81250 INR/Piece Minimum Order Quantity : 1 Dimension (L*W*H) : 285 x 125 x 275 (L x B x H) Millimeter (mm) Weight : 7.5 kg Kilograms (kg) Power : 230V AC 10% / 50Hz (Optional 110V AC) Usage : For Industrial use Product Type : Temperature calibrator Color : Blue
