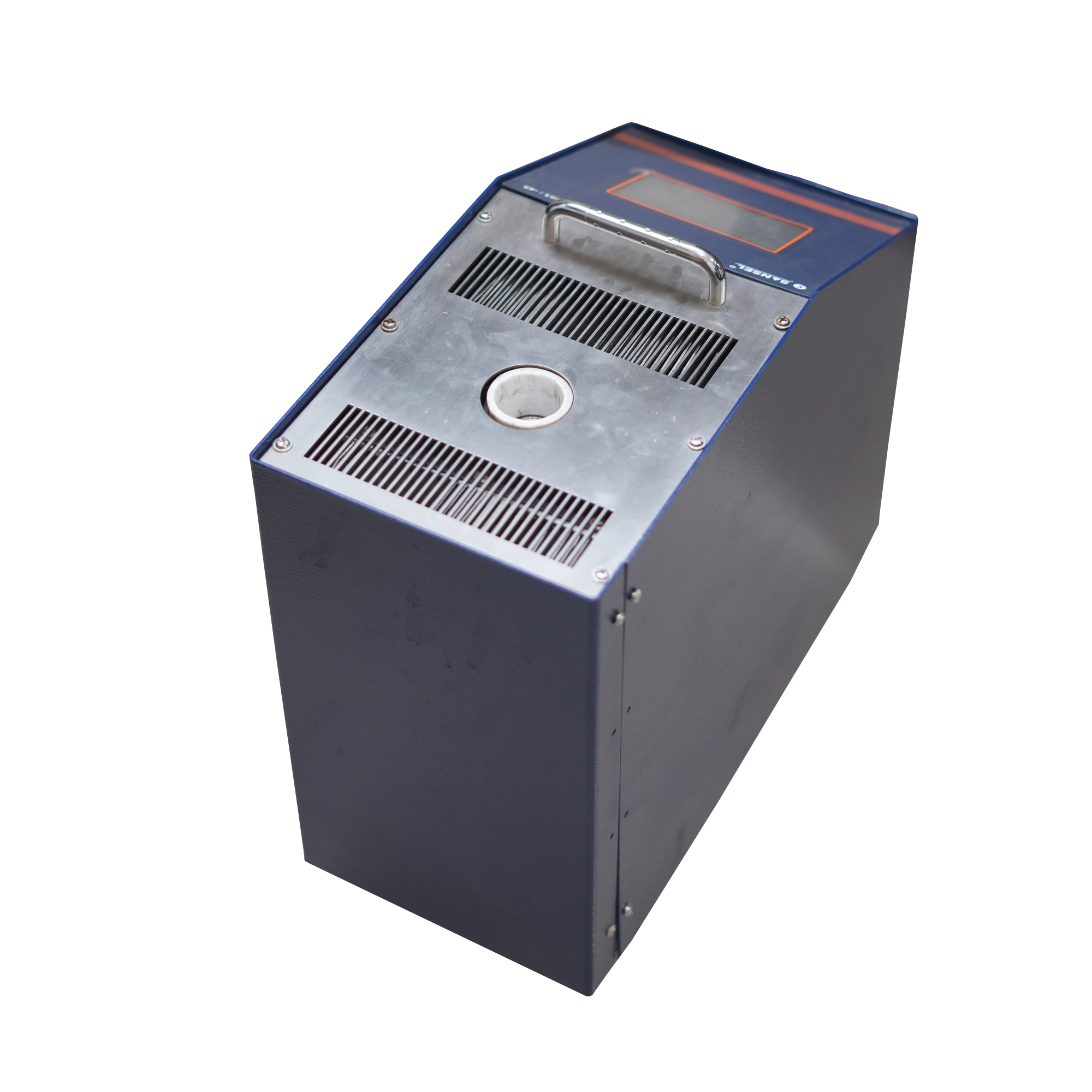

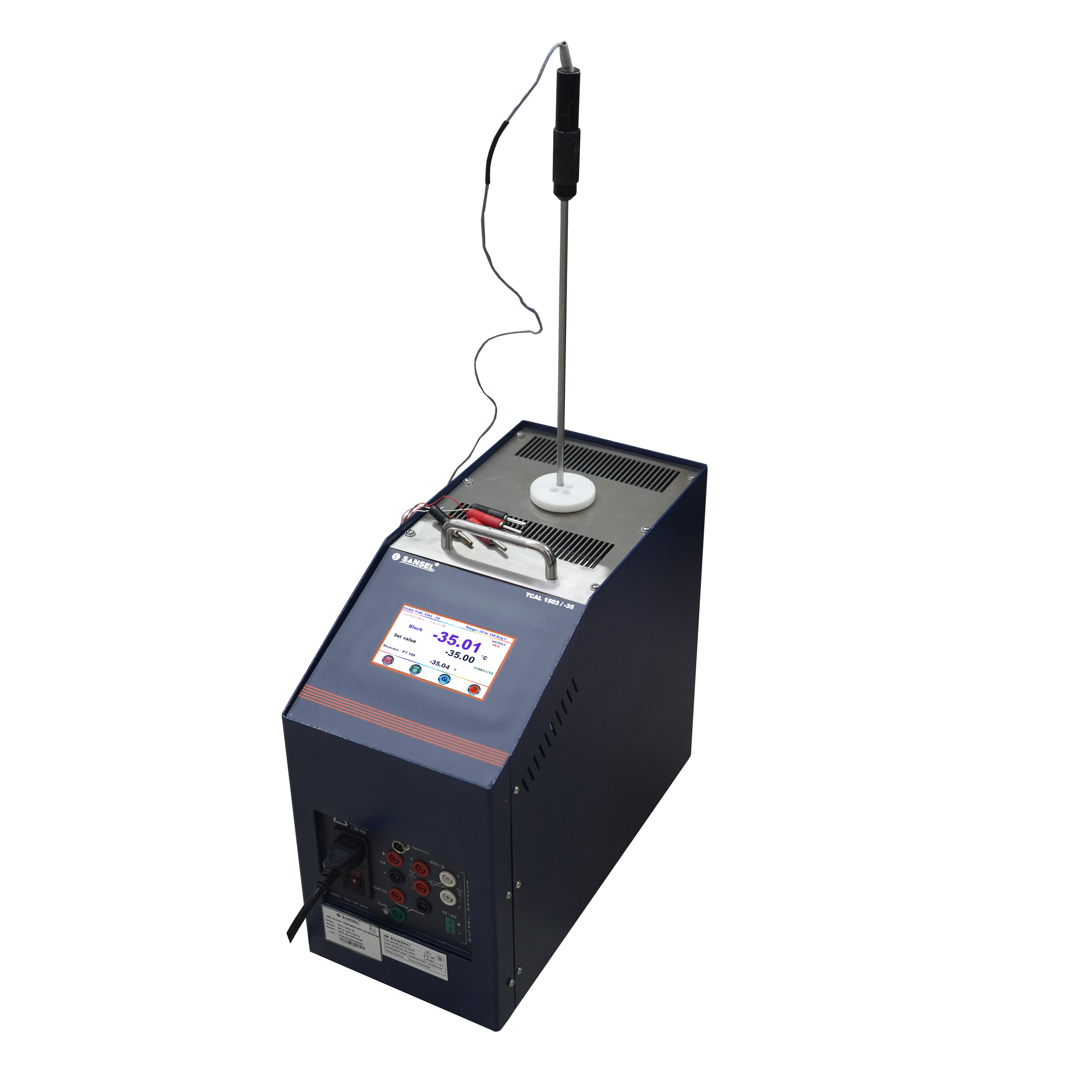

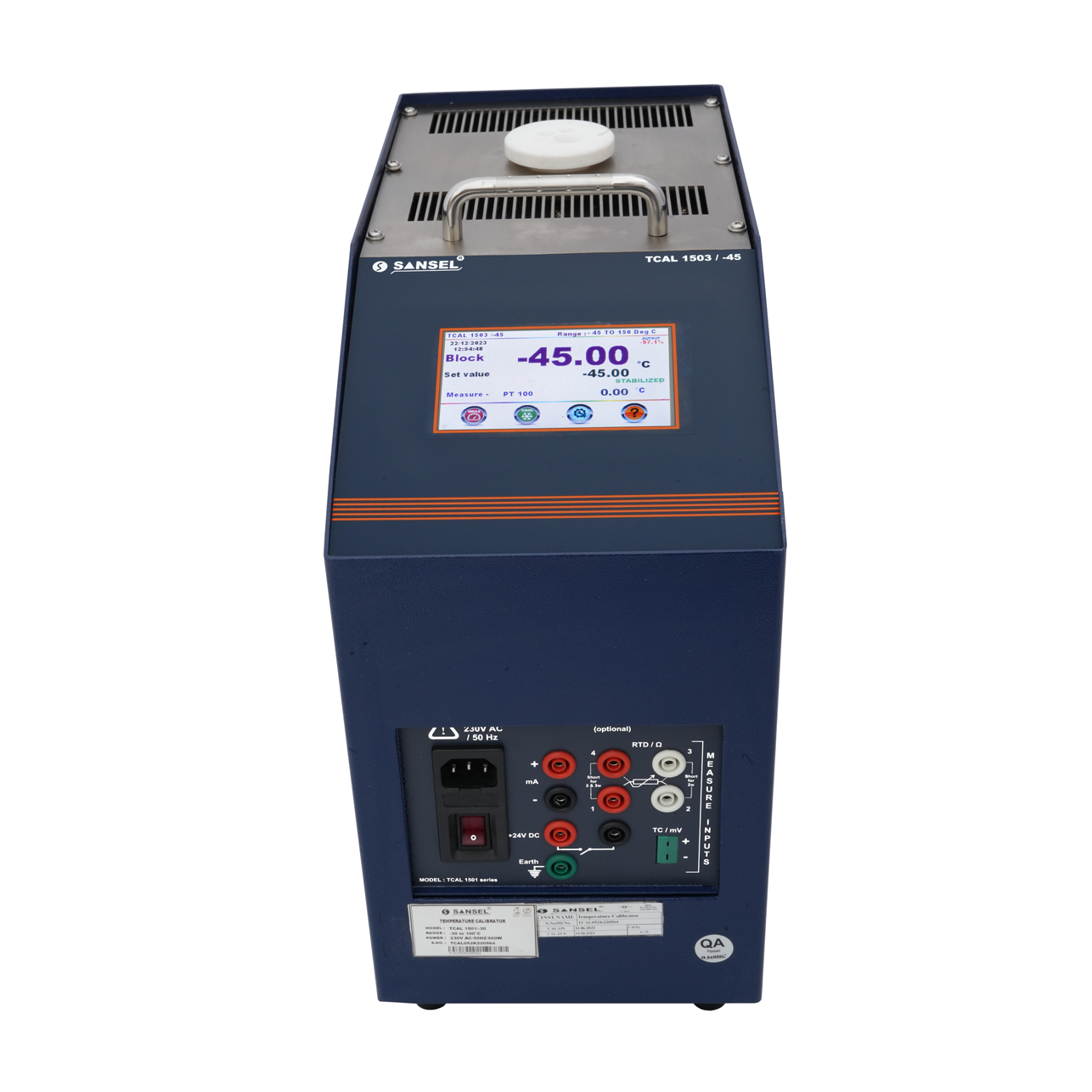

HIGH PRECISION VERY LOW TEMPERATURE DRY BLOCK CALIBRATOR

About HIGH PRECISION VERY LOW TEMPERATURE DRY BLOCK CALIBRATOR

• Model : TCAL 1503 / -40
• Display : 4.3" True colour TFT display with touch screen
• Temperature Range : -40 to 120C @23C Ambient
• Resolution : 0.01 C
• Block Stability : Better than0.03C at full range
• Block Radial Uniformity :0.02C at full range
• Block Axial Uniformity (upto 40mm) :0.18C at -45C

• Temperature Read out : C / F (selectable)
• Loading effect: Better than0.08C
• hysteresis: Better than0.03C
• Cooling time :

• Heating time : 25 mins (25 to 120 C)

75 mins (-45 to 120 C)

52 mins (-45 to 25 C)

• Stabilization time: 10 minutes
• Insert (Dia. x Height): 30 x 160 mm
• Test sensor immersion depth: 130 mm
• Standard well holes in mm: Insert No. 1 : 5.1, 6.2, 6.2 & 8.1, Insert No. 2 : 6.2, 6.2 & 10.2
• Measure inputs: RTD-PT 100, PT 1000 / TC - J, K, R, S, T, E, B , N , Analog mA, V, mV, ohms
• Cold junction Accuracy:0.3C
• UUC Sensor supply input: 24V DC10% / 50mA max.
• Power supply: 230V AC10% / 50Hz (optional 110V AC)
• Power Consumption: 500 VA
• Switch Test : Provided
• Overall Dimension in mm: 390 x 185 x 356 (L x B x H) (Approx.)
• Weight: 17.3 kg (with well insert) (Approx.)
