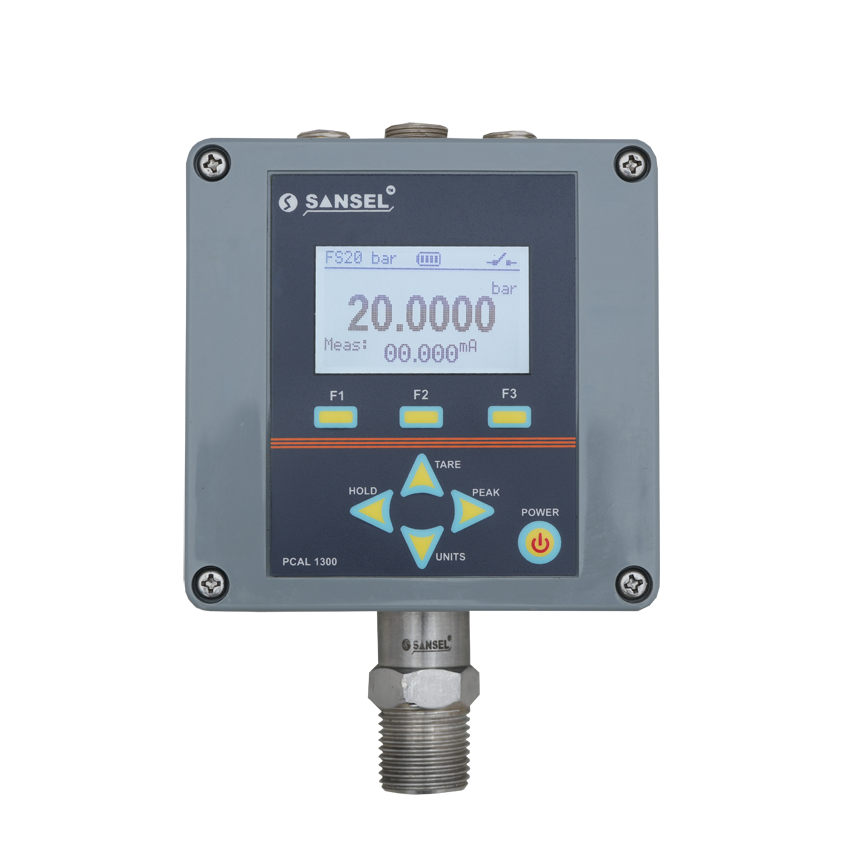

• Model : PCAL 1300 / 20 bar
• Range (bar): -0.90 to 20 bar
• Pressure media: Air
• Pressure pump: PVP 02
• Display: 128 64 COG Graphic LCD with White LED Backlight
• Instrument port (at pump): 3/8" BSP Female
• Test Port (at pump): " BSP Female
• Instrument Port: 3/8" BSP Male
• Pump Dimension: 230 140 65 mm (H W D)
• Instrument dimension: 100 100 55 (W H D) mm
• Pump Weight: 750 gms
• Instrument Weight: 400 gms (Approx.)
• Stability time: 1 to 2 mins
• Accuracy: 0.05% FS
• Pressure units * (selectable): bar, mbar, MPa, kPa, Pa, PSI, kg/cm, inHg, cmHg, mmHg, mHO, ftHO, inHO, cmHO, mmHO
• Pressure Zero: One touch zero provided on front key
• Pressure Peak: Maximum & minimum with user reset option
• Pressure overflow: FS X 2 (Max.)
• Pressure burst: FS X 3 (Max.)
• Temp.Measure: RTD - PT 100 (2,3,4, wire selectable)
• Temp. Range: -199.999 to 850.000
• mA Measure: 0-24 mA (scalable)
• Display scale: -99999 to 99999 counts (for mA measure input)

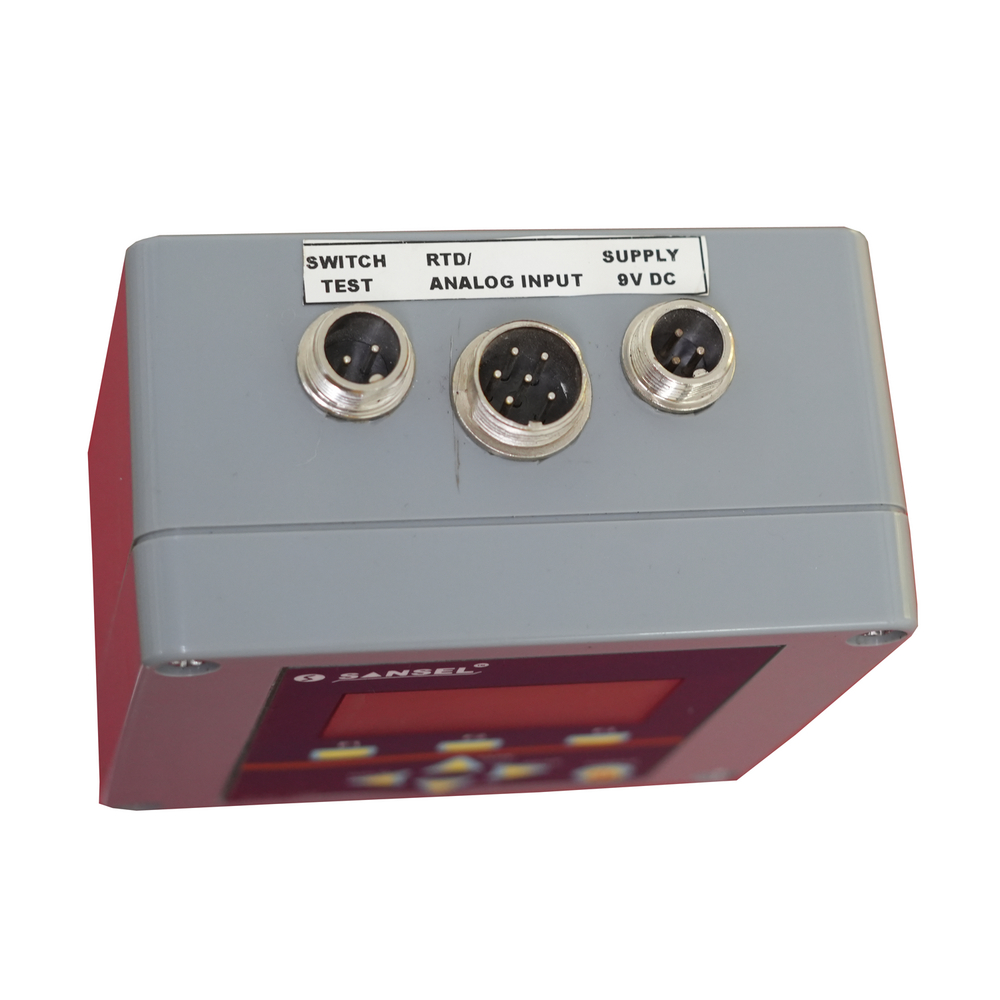

• Switch test: Provided
• Keypad: Touch key
• Power Supply: 9V DC 5% / 600 mAh Rechargeable battery with battery life 20 hours without backlight (or) 9V DC adapter / 230V AC supply operated
• PC Interface (optional): RS 485 (optional)
• PC Software (optional): Windows-based semi-automatic calibration software (optional)
