Universal Input Data Logger 8,16 & 32 Channels

Name: Universal Input Data Logger 8,16 & 32 Channels
Brand: SANSEL INSTRUMENTS & CONTROLS
Price: 153400.0 INR
Availability: InStock

Price 153400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Universal Input Data Logger 8,16 & 32 Channels Specification

Connection
Screw terminals at rear panel; USB, Ethernet (LAN), and RS-485 communication ports

Accuracy
0.1% of reading or better, depending on input type

Pressure
Supports pressure transducer input (mV/V) with programmable scaling

Weight
1 - 1.5 Kilograms (kg)

Product Type
datalogger

Function
Multi-channel data logging for universal input signals such as temperature (RTD, Thermocouple), voltage, current, resistance, frequency, and digital signals

Size
Standard 19 Rack Mount, 3U Height; 440mm (W) x 132mm (H) x 350mm (D)

Sampling Interval
Selectable from 1 second to 1 hour per channel

Display
5.7" TFT color LCD for real-time data visualization

Channel Isolation
Optically isolated inputs to prevent electrical interference

Operating Temperature
0C to 50C

Input Type
Universal Input: configurable per channel for RTD, Thermocouple, mV, V, mA, Resistance, Frequency, Digital Input

Power Supply
90-260V AC, 50/60 Hz universal input

Data Storage
Internal memory up to 8GB; supports USB data export

Enclosure
Metallic powder-coated for industrial use; wall or panel mountable

Number of Channels
Available in 8, 16, and 32 channel configurations

Alarm Outputs
2 or more configurable relay outputs for alarms

Software Compatibility

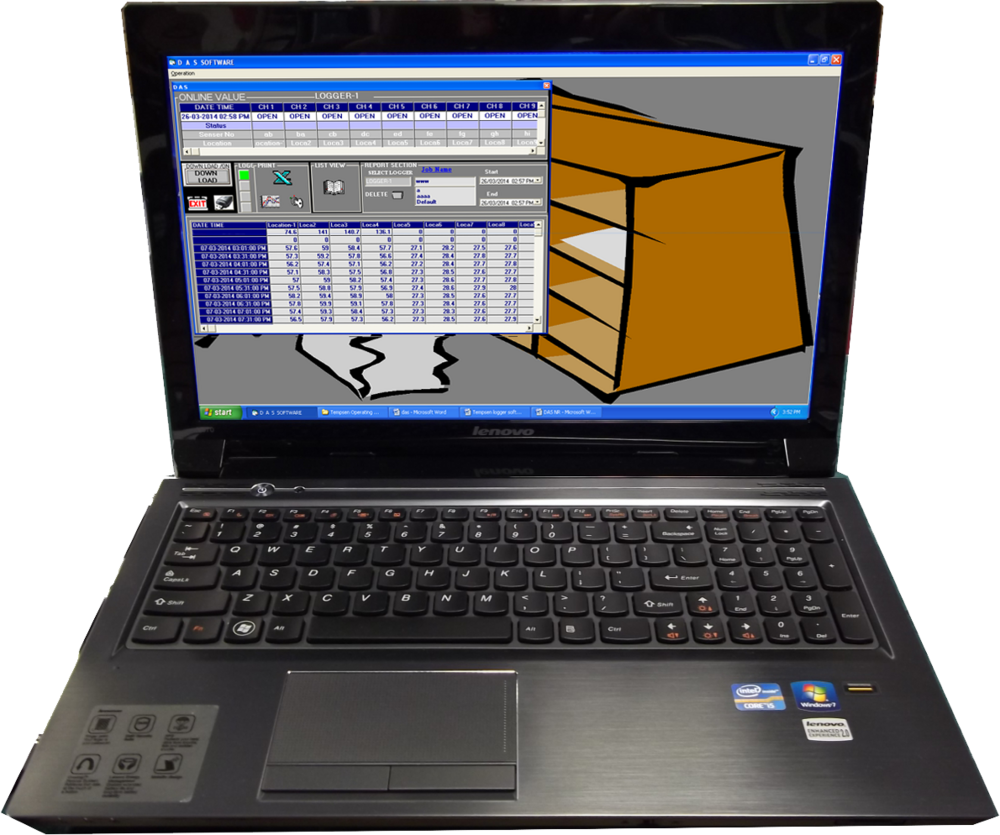

Compatible with PC-based data acquisition and analysis software; Modbus RTU/TCP supported

Universal Input Data Logger 8,16 & 32 Channels Trade Information

Minimum Order Quantity
1 Piece

FOB Port
CHENNAI

Delivery Time
3 Week

Main Export Market(s)
Eastern Europe, Asia, Australia, Central America, North America, South America, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001 : 2015

Universal Input Data Logger 8,16 & 32 Channels About

Model : DL 96 / DL 97

No. of Channel : 8 or 16 or 32 Channel
Sampling Rate : 100 msec (per channel)
Memory : 20000 Readings (per channel)
Data Download : USB Pen Drive / PC / Dot Matrix Printer
Operating Voltage : 100240 VAC @ 50 / 60 Hz

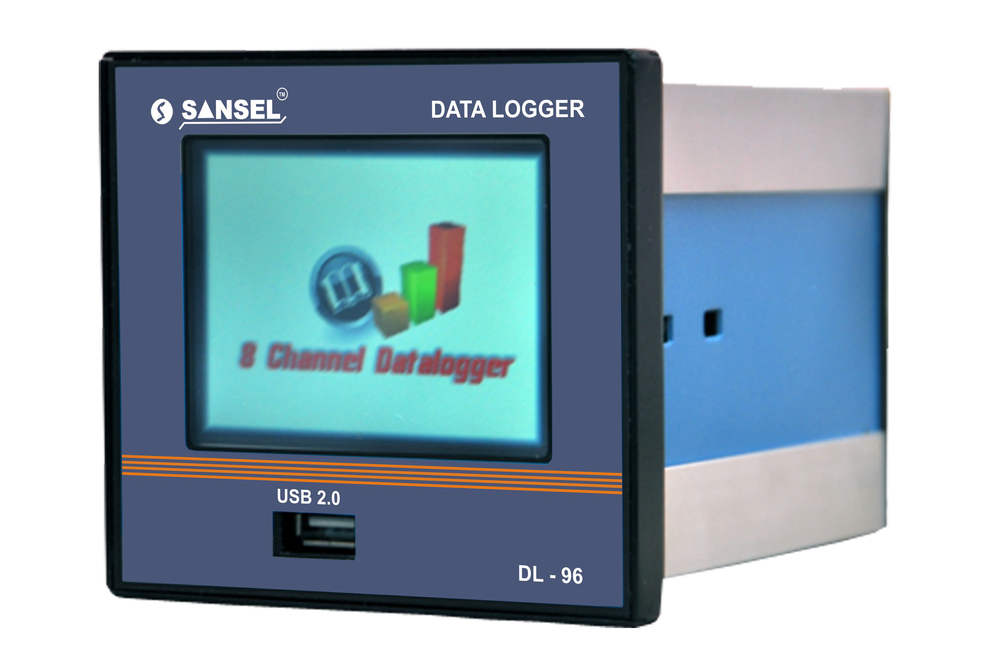

Bezel Dimension DL 96 : 100 (H) 110 (W) mm
Bezel Dimension DL 97 : 195 (H) 295 (W) mm
Cut-out Size DL 96 : 92 (H) 92 (W) mm
Cut-out Size DL 97 : 175 (H) 255 (W) mm
Unit Dimension DL 96 : 100 (H) 110 (W) 150 (D) mm
Unit Dimension DL 97 : 195 (H) 295 (W) 80 (D) mm

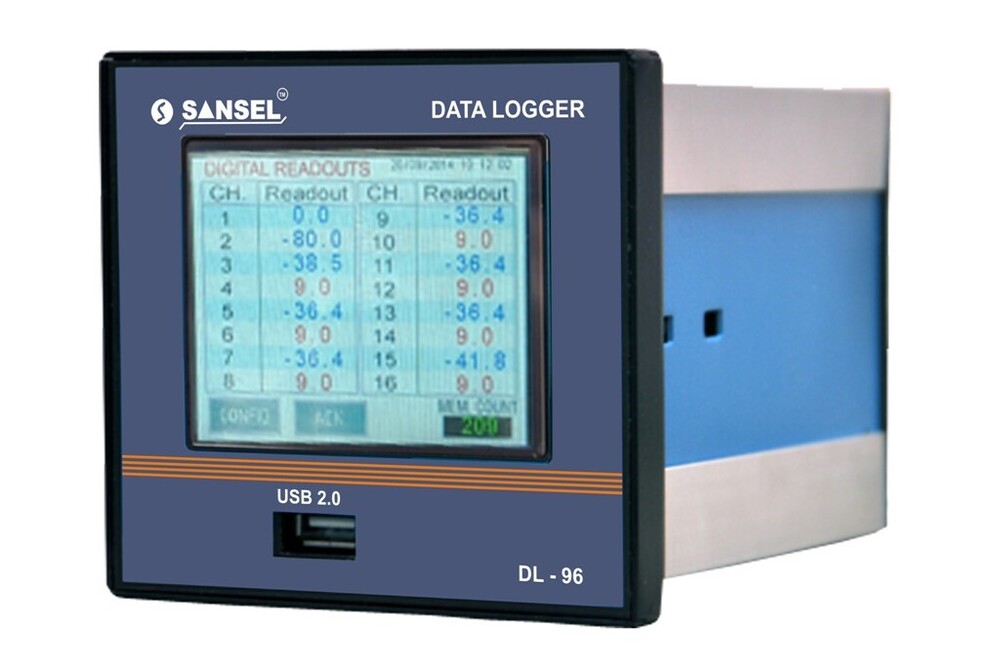

Display DL 96 : 3.5 inch Multi-Color Active Matrix Touch Screen Display

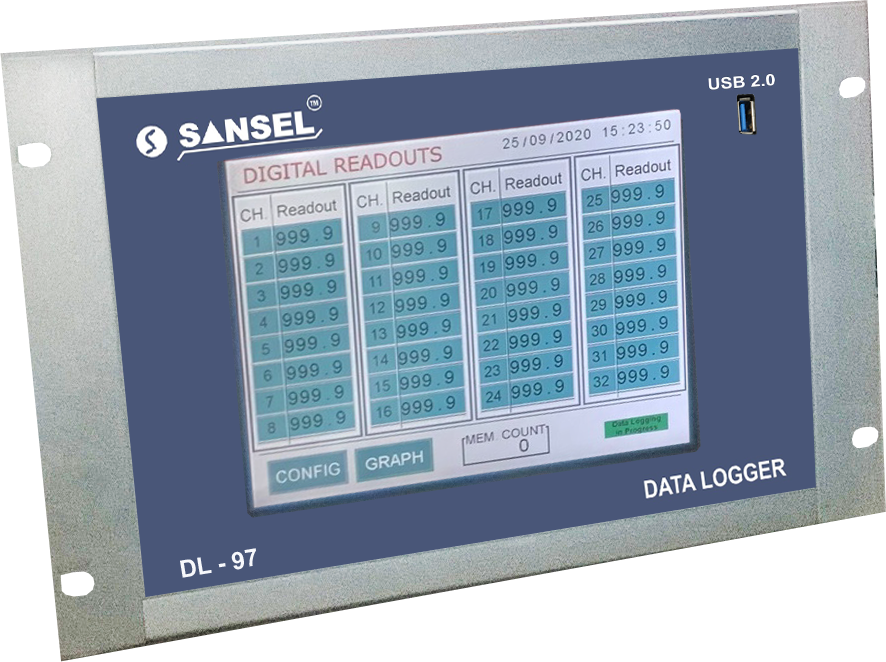

Display DL 97 : 8 inch Multi-Color Active Matrix Touch Screen Display
Input Pt100 : 199.9 300.0 C, Accuracy 0.5 C
Input K : 100 1200 C, Accuracy 1.2 C
Input J : 100 1000 C, Accuracy 1.2 C
Input N : 100 1300 C, Accuracy 1.2 C
Input T : 100.0 400.0 C, Accuracy 0.8 C
Input S : 0 1500 C, Accuracy 3 C
Input R : 0 1500 C, Accuracy 3 C
Input 020 mA : 1999 9999, Accuracy 0.15% FS
Input 420 mA : 1999 9999, Accuracy 0.15% FS
Input 01 V : 1999 9999, Accuracy 0.15% FS
Input 010 V : 1999 9999, Accuracy 0.15% FS
Weight DL 96 : 0.800 Kg
Weight DL 97 : 1.5 Kg

Effortless Multi-Channel Data Logging

Monitor up to 32 channels simultaneously with universal input configuration for each channel. Easily set up to log temperature, voltage, current, frequency, resistance, and digital signals. The system's modular design fits both small and large-scale applications, while channel isolation ensures signal integrity even in harsh industrial environments.

Advanced Data Visualization and Export

Experience real-time data monitoring on the vivid 5.7-inch TFT color LCD. The built-in 8GB memory stores extensive data, which can be conveniently exported via USB for further analysis. Compatible with leading PC-based software and supporting Modbus RTU/TCP, this logger seamlessly integrates into existing workflows for streamlined data management.

Robust Industrial Design

With its powder-coated metallic housing and standard 19" rack-mount form factor, the logger is built to endure demanding industrial conditions. It accommodates wall or panel mounting, features optically isolated inputs, and operates effectively from 0C to 50C. The screw terminal, USB, Ethernet, and RS-485 interfaces simplify connectivity and installation.

FAQ's of Universal Input Data Logger 8,16 & 32 Channels:

Q: How do I configure the input type on each channel of the Universal Input Data Logger?

A: Each channel can be set independently for different input types-including RTD, thermocouple, mV, V, mA, resistance, frequency, or digital input-using the system menu on the TFT LCD display. Simply navigate to the configuration settings, select the desired channel, and assign the corresponding input type according to your application needs.

Q: What is the process for exporting recorded data to an external device?

A: Data stored on the internal 8GB memory can be exported directly via the USB port. Use the menu on the display to select 'Export Data,' then connect a USB drive to transfer all log files for further processing or backup on your PC.

Q: When should I use the alarm relay outputs, and how are they configured?

A: The configurable alarm relay outputs are ideal for alerting when an input parameter exceeds preset thresholds. Set these limits through the LCD interface; once a reading goes beyond the specified value, the relay triggers connected alarms or control systems, ensuring proactive monitoring of your process.

Q: Where can the Universal Input Data Logger be installed?

A: Designed for versatility, the unit can be mounted on a standard 19-inch rack (3U height), wall, or panel, providing flexibility for installation in control rooms, laboratories, or factory floors. The robust metallic enclosure protects the logger in challenging industrial environments.

Q: What benefits does channel isolation provide in this data logger?

A: Channel isolation, achieved via optical separation, safeguards against electrical interference and cross-talk between inputs. This ensures the integrity and accuracy of data, making the logger suitable for sensitive measurements in electrically noisy environments.

Q: How does the logger support integration with existing data acquisition systems?

A: The logger is compatible with PC-based software via Ethernet (LAN), USB, or RS-485 ports. Supporting Modbus RTU/TCP protocols enables easy communication and integration with SCADA or other supervisory systems, streamlining data analysis and process control.
