About

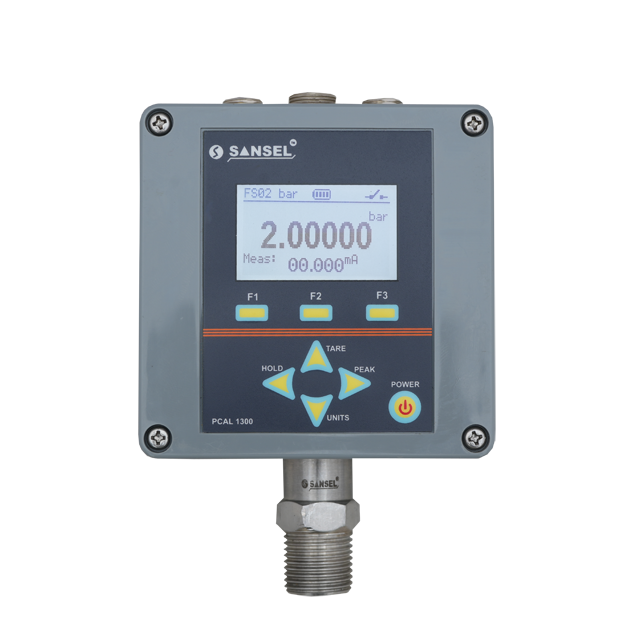

• Model : PCAL 1300 / 2 bar
• Range (bar) : 0.9 to 2 bar
• Pressure Media : Air
• Pressure Pump : PVP 01, 02
• Display : 128 64 COG Graphic LCD with White LED Back Light
• Instrument Port (at Pump) : 3/8 BSP Female
• Test Port (at Pump) : BSP Female
• Instrument Port : 3/8 BSP Male
• Pump Dimension in mm (Approx.) : PVP 01 (230 220 70 mm (H W D)), PVP 02 (230 140 65 mm (L B H))
• Resolution (bar) : 6 Digit User Selectable
• Instrument Port (Extended) : BSP Male 10 mm Long
• Instrument Dimension : 100 100 55 (W H D) mm
• Instrument Weight : 400 gms (Approx.)
• Stability Time : 1 to 2 mins
• Accuracy : 0.05% FS
• Pressure Units (Selectable)* : bar, mbar, MPa, kPa, Pa, PSI, kg/cm, inHg, cmHg, mmHg, mHO, ftHO, inHO, cmHO, mmHO
• Pressure Zero : One Touch Zero Provided on Front Key
• Pressure Peak : Maximum & Minimum with User Reset Option
• Pressure Overflow : FS 2 (Max.)
• Pressure Burst : FS 3 (Max.)
• Temperature Measure : RTD PT100 (2, 3, 4 Wire Selectable)
• Temperature Range : 199.999 to 850.000
• mA Measure : 024 mA (Scalable)
• Display Scale : 99999 to 99999 Counts (for mA Measure Input)

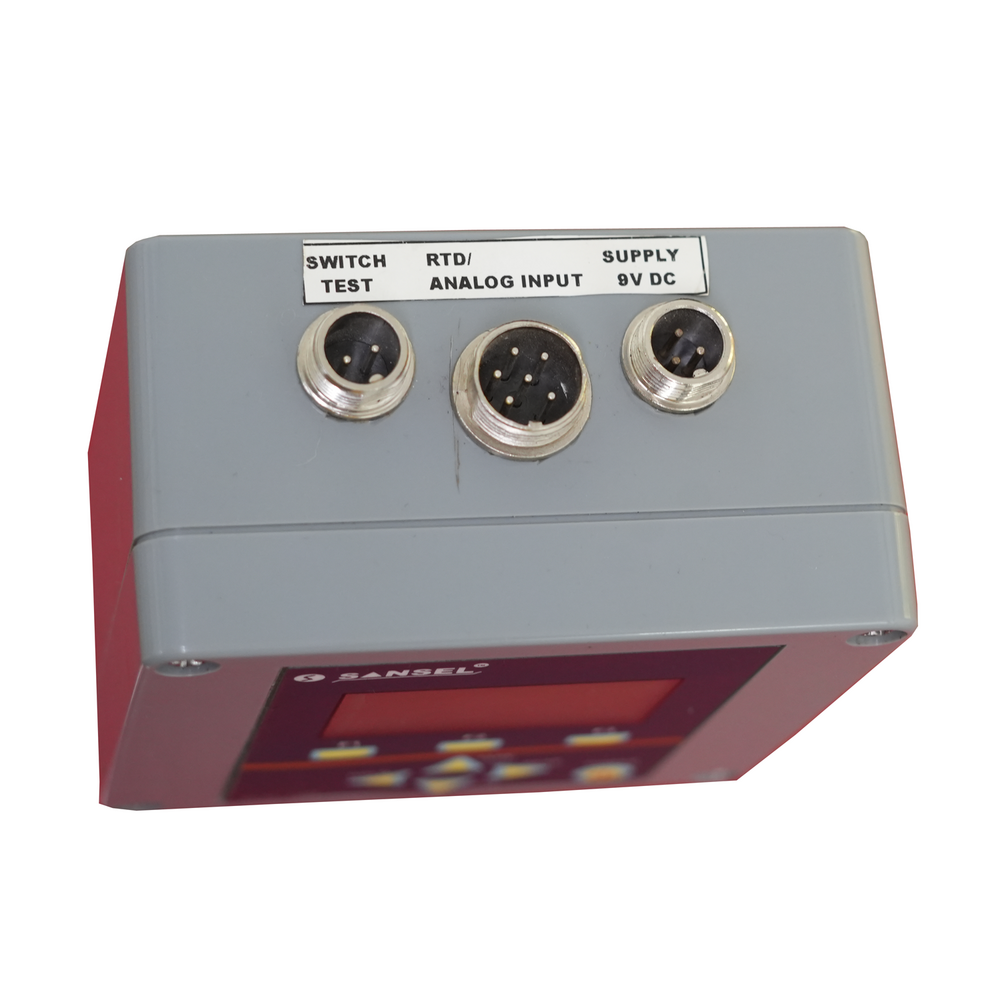

• Switch Test : Provided
• Display Hold : One Touch Hold Provided on Front Key
• Power Supply : 9 V DC 5% / 600 mAh Rechargeable Battery with Battery Life 20 Hours without Backlight (or) 9 V DC Adapter / 230 V AC Supply Operated
• Pump Weight (gms) (Approx.) : PVP 01 (1.1 kg), PVP 02 (750 gms)
• PC Interface (Optional) : RS-485 (2 Wire) (Note: Connect to PC using USB to RS-485 Converter Supplied along with PC Software)
• PC Software (Optional) : Windows Based Semi-Automatic Calibration Software (Optional)
